Homes DirectSedona Ridge 24523A
3 Bed
2 Bath
1,213 Sq. Ft.
52' x 23' 4"

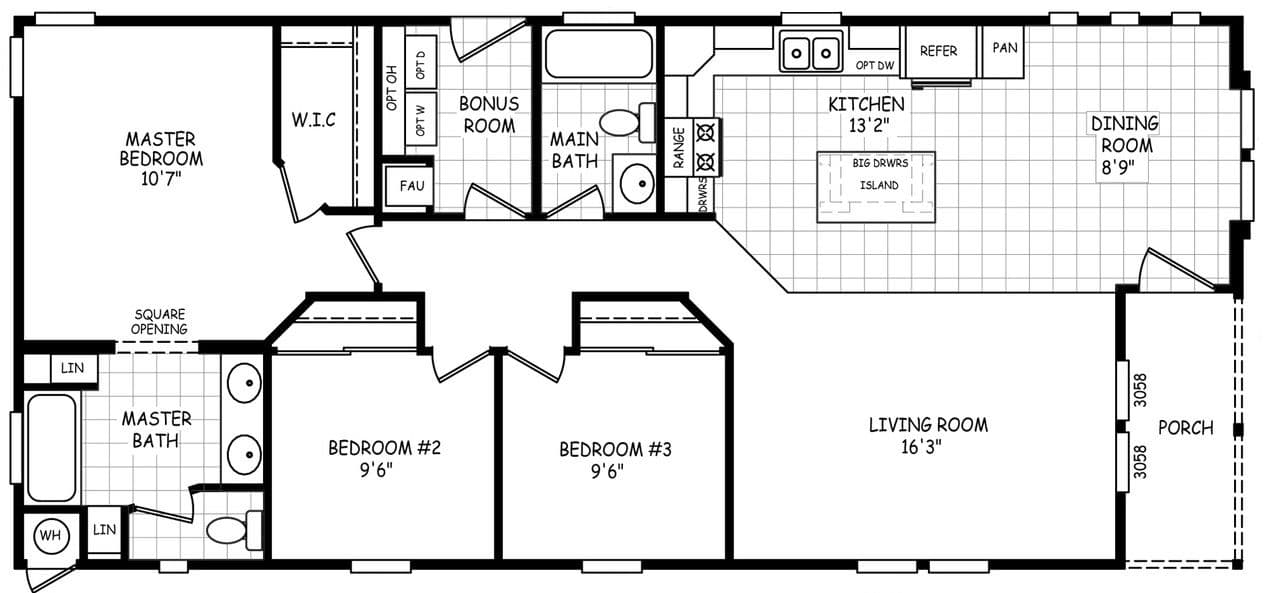

Floor Plan
Property map
Enter your address to check if this home fits on your property
Enter an address to find homes that fit your lot
Exterior & Construction
- Solid I-Beam Frame Construction With Corrosion Resistant Undercoating
- Vapor Barrier Between Frame System and Subfloor
- Sealed Floor Duct System and Water Lines, Installed Inside R-22 Rated Fiberglass Blankets Under Subfloor
- 5/8 Inch Floor Decking
- 2” x 6” Subfloor Construction With Joists Spaced 16” On Center
- Shut-Off Valves On All Water Fixtures
- 2” x 4” Exterior Wall Construction With Studs Spaced 16” On Center and R-11 Rated Fiberglass Insulation
- 90” Exterior Sidewall Height
- 100 Amp Electric Service With Copper Wiring and Interior Panel Box
- Forced Air Gas Auto Ignition Furnace and Air Exchange System
- 40 Gallon Electric Water Heater
- R-25 Rated Blown Roof Insulation
- OSB Roof Decking With Class A Rated Shingles and Underlayment
- White semi-gloss interior paint
- Cement Siding With Hand-Painted Finish
- Attractive Elevation Per Plan
- Large White Vinyl Framed Dual-Paned Windows With Locks
- Bath Windows – Per Plan
- 36” Residential Insulated Front Door With Deadbolt
- 36” Residential 9-Lite Rear Door With Deadbolt
- Exterior Lights At Front and Rear Doors
- 6” Roof Eaves On All Side Walls, 12” Front & Rear Overhangs
- (1) Exterior GFCI Electric Outlet
- Solid I-Beam Frame Construction With Corrosion Resistant Undercoating
- Vapor Barrier Between Frame System and Subfloor
- Sealed Floor Duct System and Water Lines, Installed Inside R-22 Rated Fiberglass Blankets Under Subfloor
- 5/8 Inch Floor Decking
- 2” x 6” Subfloor Construction With Joists Spaced 16” On Center
- Shut-Off Valves On All Water Fixtures
- 2” x 4” Exterior Wall Construction With Studs Spaced 16” On Center and R-11 Rated Fiberglass Insulation
- 90” Exterior Sidewall Height
- 100 Amp Electric Service With Copper Wiring and Interior Panel Box
- Forced Air Gas Auto Ignition Furnace and Air Exchange System
- 40 Gallon Electric Water Heater
- R-25 Rated Blown Roof Insulation
- OSB Roof Decking With Class A Rated Shingles and Underlayment
- White semi-gloss interior paint
- Cement Siding With Hand-Painted Finish
- Attractive Elevation Per Plan
- Large White Vinyl Framed Dual-Paned Windows With Locks
- Bath Windows – Per Plan
- 36” Residential Insulated Front Door With Deadbolt
- 36” Residential 9-Lite Rear Door With Deadbolt
- Exterior Lights At Front and Rear Doors
- 6” Roof Eaves On All Side Walls, 12” Front & Rear Overhangs
- (1) Exterior GFCI Electric Outlet
Kitchen
- Custom Cabinet Construction With 3/4” Thick Face Frames
- 31” Tall Kitchen City-Scape Overhead Cabinets With Finished Interiors, Adjustable Shelves and Large Crown Cabinet Moulding
- Hardwood Cabinet Doors With Concealed, Adjustable Hinges (Moonlite & Ebusu Only)
- Furniture Style Island – Per Plan
- High-Pressure Laminate Countertops with Crescent Edge
- 7” Deep Stainless Steel Kitchen Sink
- 16 Cubic Foot Double-Door, Frost-Free Refrigerator
- 30” Free-Standing Gas Range
- Utility Shelf Over Washer and Dryer Area In Bonus Room
- Custom Cabinet Construction With 3/4” Thick Face Frames
- 31” Tall Kitchen City-Scape Overhead Cabinets With Finished Interiors, Adjustable Shelves and Large Crown Cabinet Moulding
- Hardwood Cabinet Doors With Concealed, Adjustable Hinges (Moonlite & Ebusu Only)
- Furniture Style Island – Per Plan
- High-Pressure Laminate Countertops with Crescent Edge
- 7” Deep Stainless Steel Kitchen Sink
- 16 Cubic Foot Double-Door, Frost-Free Refrigerator
- 30” Free-Standing Gas Range
- Utility Shelf Over Washer and Dryer Area In Bonus Room
Bathroom
- Exhaust Fans In Baths
- Porcelain Bath Sinks
- 36” Tall Master Bath Lavy
- 1 Piece Fiberglass Tub/Shower Combinations In Baths
- Water Saver Commodes
- Exhaust Fans In Baths
- Porcelain Bath Sinks
- 36” Tall Master Bath Lavy
- 1 Piece Fiberglass Tub/Shower Combinations In Baths
- Water Saver Commodes
Interior
- Linoleum Hard-Surface Floor Covering, Including Entryway
- Durable Cut Pile Carpet
- Vaulted Ceilings Throughout Entire Home With Knockdown Textured Finish
- Tape and Textured Interior Walls Throughout Home
- Residential Raided Panel Interior Passage Doors, Mortised With 150Lb Hinges & Lever Handles
- 5/8” Thick Interior Door Jambs With Profiled Door Casing
- Drapery Valances With Aluminum Mini Blinds
- Ventilated Shelving In Wardrobes and Pantries
- Decorator Style Electrical Receptacles and Silent Rocker Switches
- Dining Room Chandelier, Bedroom Ceiling Lights and Bath Vanity Lights
- Ceiling Fan Ready In Living Room and Master Bedroom
- Linoleum Hard-Surface Floor Covering, Including Entryway
- Durable Cut Pile Carpet
- Vaulted Ceilings Throughout Entire Home With Knockdown Textured Finish
- Tape and Textured Interior Walls Throughout Home
- Residential Raided Panel Interior Passage Doors, Mortised With 150Lb Hinges & Lever Handles
- 5/8” Thick Interior Door Jambs With Profiled Door Casing
- Drapery Valances With Aluminum Mini Blinds
- Ventilated Shelving In Wardrobes and Pantries
- Decorator Style Electrical Receptacles and Silent Rocker Switches
- Dining Room Chandelier, Bedroom Ceiling Lights and Bath Vanity Lights
- Ceiling Fan Ready In Living Room and Master Bedroom
Images of homes are solely for illustrative purposes and should not be relied upon. Images may not accurately represent the actual condition of a home as constructed, and may contain options which are not standard on all homes.
Sedona Ridge 24523A
$120,900
3 bedrooms (sleeps 3-6)
2 full bathrooms
1,213 sq. ft.
52' x 23' 4"
Sedona Ridge 24523A
$120,900
3 bedrooms (sleeps 3-6)
2 full bathrooms
1,213 sq. ft.
52' x 23' 4"
Cavco West Sedona Ridge standard features
Construction
- Solid I-Beam Frame Construction With Corrosion Resistant Undercoating
- Vapor Barrier Between Frame System and Subfloor
- Sealed Floor Duct System and Water Lines, Installed Inside R-22 Rated Fiberglass Blankets Under Subfloor
- 5/8 Inch Floor Decking
- 2” x 6” Subfloor Construction With Joists Spaced 16” On Center
- Shut-Off Valves On All Water Fixtures
- 2” x 4” Exterior Wall Construction With Studs Spaced 16” On Center and R-11 Rated Fiberglass Insulation
- 90” Exterior Sidewall Height
- 100 Amp Electric Service With Copper Wiring and Interior Panel Box
- Forced Air Gas Auto Ignition Furnace and Air Exchange System
- 40 Gallon Electric Water Heater
- R-25 Rated Blown Roof Insulation
- OSB Roof Decking With Class A Rated Shingles and Underlayment
- Solid I-Beam Frame Construction With Corrosion Resistant Undercoating
- Vapor Barrier Between Frame System and Subfloor
- Sealed Floor Duct System and Water Lines, Installed Inside R-22 Rated Fiberglass Blankets Under Subfloor
- 5/8 Inch Floor Decking
- 2” x 6” Subfloor Construction With Joists Spaced 16” On Center
- Shut-Off Valves On All Water Fixtures
- 2” x 4” Exterior Wall Construction With Studs Spaced 16” On Center and R-11 Rated Fiberglass Insulation
- 90” Exterior Sidewall Height
- 100 Amp Electric Service With Copper Wiring and Interior Panel Box
- Forced Air Gas Auto Ignition Furnace and Air Exchange System
- 40 Gallon Electric Water Heater
- R-25 Rated Blown Roof Insulation
- OSB Roof Decking With Class A Rated Shingles and Underlayment
Exterior
- White semi-gloss interior paint
- Cement Siding With Hand-Painted Finish
- Attractive Elevation Per Plan
- Large White Vinyl Framed Dual-Paned Windows With Locks
- Bath Windows – Per Plan
- 36” Residential Insulated Front Door With Deadbolt
- 36” Residential 9-Lite Rear Door With Deadbolt
- Exterior Lights At Front and Rear Doors
- 6” Roof Eaves On All Side Walls, 12” Front & Rear Overhangs
- (1) Exterior GFCI Electric Outlet
- White semi-gloss interior paint
- Cement Siding With Hand-Painted Finish
- Attractive Elevation Per Plan
- Large White Vinyl Framed Dual-Paned Windows With Locks
- Bath Windows – Per Plan
- 36” Residential Insulated Front Door With Deadbolt
- 36” Residential 9-Lite Rear Door With Deadbolt
- Exterior Lights At Front and Rear Doors
- 6” Roof Eaves On All Side Walls, 12” Front & Rear Overhangs
- (1) Exterior GFCI Electric Outlet
Interior
- Linoleum Hard-Surface Floor Covering, Including Entryway
- Durable Cut Pile Carpet
- Vaulted Ceilings Throughout Entire Home With Knockdown Textured Finish
- Tape and Textured Interior Walls Throughout Home
- Residential Raided Panel Interior Passage Doors, Mortised With 150Lb Hinges & Lever Handles
- 5/8” Thick Interior Door Jambs With Profiled Door Casing
- Drapery Valances With Aluminum Mini Blinds
- Ventilated Shelving In Wardrobes and Pantries
- Decorator Style Electrical Receptacles and Silent Rocker Switches
- Dining Room Chandelier, Bedroom Ceiling Lights and Bath Vanity Lights
- Ceiling Fan Ready In Living Room and Master Bedroom
- Linoleum Hard-Surface Floor Covering, Including Entryway
- Durable Cut Pile Carpet
- Vaulted Ceilings Throughout Entire Home With Knockdown Textured Finish
- Tape and Textured Interior Walls Throughout Home
- Residential Raided Panel Interior Passage Doors, Mortised With 150Lb Hinges & Lever Handles
- 5/8” Thick Interior Door Jambs With Profiled Door Casing
- Drapery Valances With Aluminum Mini Blinds
- Ventilated Shelving In Wardrobes and Pantries
- Decorator Style Electrical Receptacles and Silent Rocker Switches
- Dining Room Chandelier, Bedroom Ceiling Lights and Bath Vanity Lights
- Ceiling Fan Ready In Living Room and Master Bedroom
Kitchen
- Custom Cabinet Construction With 3/4” Thick Face Frames
- 31” Tall Kitchen City-Scape Overhead Cabinets With Finished Interiors, Adjustable Shelves and Large Crown Cabinet Moulding
- Hardwood Cabinet Doors With Concealed, Adjustable Hinges (Moonlite & Ebusu Only)
- Furniture Style Island – Per Plan
- High-Pressure Laminate Countertops with Crescent Edge
- 7” Deep Stainless Steel Kitchen Sink
- 16 Cubic Foot Double-Door, Frost-Free Refrigerator
- 30” Free-Standing Gas Range
- Utility Shelf Over Washer and Dryer Area In Bonus Room
- Custom Cabinet Construction With 3/4” Thick Face Frames
- 31” Tall Kitchen City-Scape Overhead Cabinets With Finished Interiors, Adjustable Shelves and Large Crown Cabinet Moulding
- Hardwood Cabinet Doors With Concealed, Adjustable Hinges (Moonlite & Ebusu Only)
- Furniture Style Island – Per Plan
- High-Pressure Laminate Countertops with Crescent Edge
- 7” Deep Stainless Steel Kitchen Sink
- 16 Cubic Foot Double-Door, Frost-Free Refrigerator
- 30” Free-Standing Gas Range
- Utility Shelf Over Washer and Dryer Area In Bonus Room
Bathroom
- Exhaust Fans In Baths
- Porcelain Bath Sinks
- 36” Tall Master Bath Lavy
- 1 Piece Fiberglass Tub/Shower Combinations In Baths
- Water Saver Commodes
- Exhaust Fans In Baths
- Porcelain Bath Sinks
- 36” Tall Master Bath Lavy
- 1 Piece Fiberglass Tub/Shower Combinations In Baths
- Water Saver Commodes
