5/8” Interlocking Tongue and Groove OSB Floor Decking
2x6 Exterior Walls - 16” O.C.
2x4 Interior Walls - 24” O.C.
2x6 Floor Joists on 27’ Wide & 40’-6” Wide Homes
2x8 Floor Joists on 30’ Wide & 15’-6” Wide Homes
Floor Joists 16” On Center
12” Rolled US Steel I-Beams
PEX Tubing For Water Lines
PVC Pipes For Drain Lines
3:12 Roof Pitch 27’ Wide Homes
3:12 Roof Pitch 15’-6” Wide Homes
2.59:12 Roof Pitch 30’ Wide Homes
2.13:12 Roof Pitch 40’-6” Wide Homes
20# Roof Load
Engineered Trusses
GAF® TimberlineHDZ® Series Architectural Style Shingles w/Lifetime Limited Warranty
LP® SmartSide® Panel Siding
House Wrap Vapor Barrier
LP® SmartSide® Ventilated Soffits
12” Residential Eaves (6” Eaves for Single Section Sidewalls)
Ventilated Ridge Cap
Standard Dormer Model Specific
36” 6-Panel In-Swing Fiberglass Front Door with Deadbolt, Knocker, & Viewer
36” 6-Panel In-Swing Fiberglass Rear Door with Deadbolt
Coach Light at Exterior Doors
Kwikset® Exterior Locksets
Exterior GFI Receptable at Front & Rear Doors
Exterior Hose Bibb
Window Flashing
8’-6” Sidewall Height - Flat Ceilings
Double 2x4 Marriage Walls - 16” O.C.
Unitized Construction
Water Shut-Off Valves T/O
Primary Water Shutoff Valve
Exterior GFI Receptacle (2)
7/16” OSB Roof Decking
5/8” Interlocking Tongue and Groove OSB Floor Decking
2x6 Exterior Walls - 16” O.C.
2x4 Interior Walls - 24” O.C.
2x6 Floor Joists on 27’ Wide & 40’-6” Wide Homes
2x8 Floor Joists on 30’ Wide & 15’-6” Wide Homes
Floor Joists 16” On Center
12” Rolled US Steel I-Beams
PEX Tubing For Water Lines
PVC Pipes For Drain Lines
3:12 Roof Pitch 27’ Wide Homes
3:12 Roof Pitch 15’-6” Wide Homes
2.59:12 Roof Pitch 30’ Wide Homes
2.13:12 Roof Pitch 40’-6” Wide Homes
20# Roof Load
Engineered Trusses
GAF® TimberlineHDZ® Series Architectural Style Shingles w/Lifetime Limited Warranty
LP® SmartSide® Panel Siding
House Wrap Vapor Barrier
LP® SmartSide® Ventilated Soffits
12” Residential Eaves (6” Eaves for Single Section Sidewalls)
Ventilated Ridge Cap
Standard Dormer Model Specific
36” 6-Panel In-Swing Fiberglass Front Door with Deadbolt, Knocker, & Viewer
36” 6-Panel In-Swing Fiberglass Rear Door with Deadbolt
Coach Light at Exterior Doors
Kwikset® Exterior Locksets
Exterior GFI Receptable at Front & Rear Doors
Exterior Hose Bibb
Window Flashing

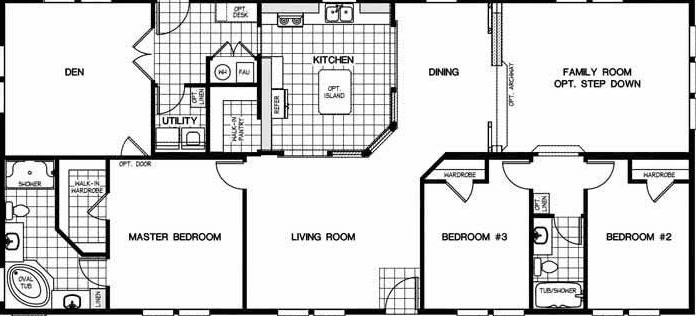

Images of homes are solely for illustrative purposes and should not be relied upon. Images may not accurately represent the actual condition of a home as constructed, and may contain options which are not standard on all homes.
