The Bay View I 28443A
3 Bed
2 Bath
1,188 Sq. Ft.
44' x 27'

Floor Plan

    The bay view i 28443a floor plan home features

    Property map

    Enter your address to check if this home fits on your property

    Enter an address to find homes that fit your lot


    Exterior & Construction

    • Siding: Allura Panel Fibercement Traditional Cedar 30YR
    • Siding Underlayment: House Wrap
    • Trim: 3.5" Allura Fibercement
    • Fascia: 7.5" Allura Fibercement
    • Soffit: HardiSoffit Cedarmill
    • Roofing: Architectural Shingles
    • Roofing Underlayment: Sythetic
    • Windows: Vinyl Frame Low-E Dual Glazed
    • Front Door: 36" Six-Panel
    • Rear Door: 36" Six-Panel
    • Exterior Floor Decking: Stained Wood- per print
    • Hose Bib: Optional
    • Dormer: Optional
    • Frame: I-Beam Chassis
    • Axles: Recycled
    • Floor Joist: 2x6 16" OC or 2x8 16" OC on 14' or Wider Floors
    • Floor Decking: 19/32 OSB Tongue & Groove
    • Exterior Walls: 2x6 16" OC / 90" Height
    • Interior Walls: 16" OC @ Marriage Line 24" OC All Others
    • Roof Trusses: 24" OC
    • Roof Pitch & Load: 3/12 Pitch 30#
    • Eaves & Overhangs: 12"
    • Ceiling: Vaulted
    • Insulation: R40-R21-R38 (Ceiling - Walls - Floor)
    • Heating: EB-15F Electric Furnace*
    • Duct System: Insulated Graduated Fiberglass
    • Heat Registers: In Line With Toe-Kick Kitchen & Baths
    • Air Return: Over Door
    • Cross Overs: Flex Ducts
    • Ventilation: Baths & Whole Home
    • Air & Vapor Barrier: Sill Seal with Spray Vapor Barrier
    • Crawl Space: N/A
    • Attic Access: N/A

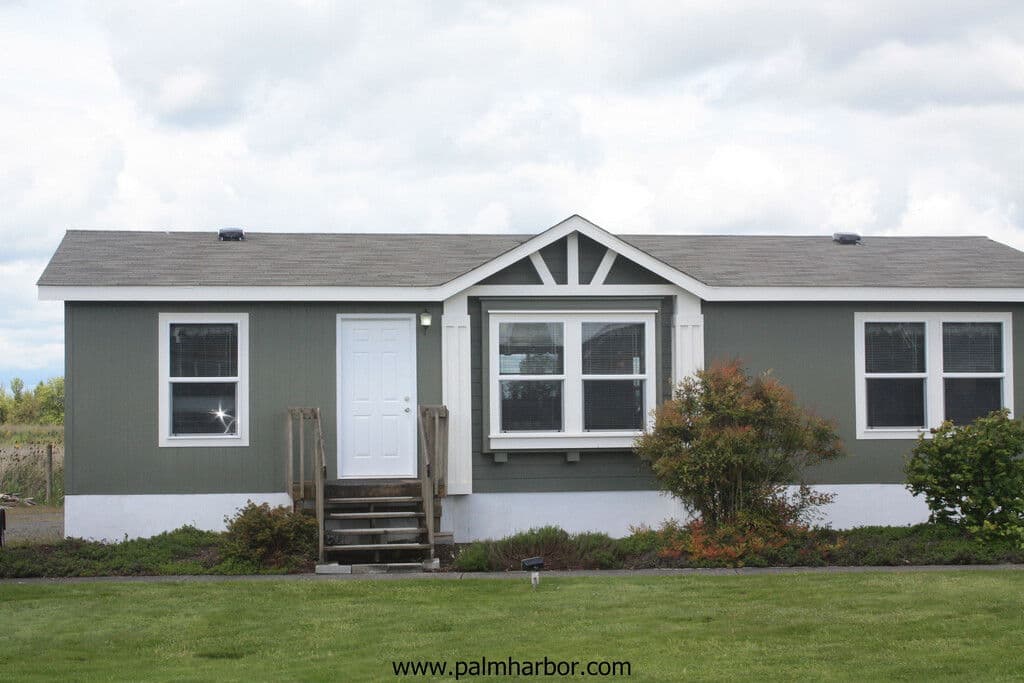

    The bay view i 28443a hero, elevation, and exterior home features

    Kitchen

    • Kitchen Sink: 7" Deep Stainless Steel Double Bowl
    • Kitchen Faucet: Nickel Single Lever
    • Kitchen Sink Front: Fixed Drawer Front
    • Shut Off Valves: All Fixtures & Whole Home
    • Range: Black Freestanding Electric
    • Range Ventilation: Black Broan Vertical Range Hood
    • Refrigerator: Black 18cf Top & Bottom Frost Free
    • Over Refrigerator: Shelf
    • Water Heater: Rheem 40 Gal Electric
    • Water Heater Access: Access Panel
    • Utility Plumbing: Plumb for Washer Single Lever Gate Valves
    • Special Plumbing: Plumb for Icemaker
    • Gas Lines: N/A
    400 kitchen home features

    Bathroom

    • Master Bathroom
    • Tub / Shower: 60" 1-piece Fiberglass Tub/Shower Combo
    • Tub / Shower Faucet: Single Control Anti-Scald Diverter
    • Tub: N/A
    • Lavy: China Sink With Overflow
    • Lavy Faucet: Single Handle Lavy Faucet
    • Toilet: Elongated Bowl
    • Mirror: Trimmed Above Sink
    • Hardware: Brushed Nickel Towel Hook & Tissue Holder
    • Secondary Bathroom
    • Tub / Shower: 60" 1-piece Fiberglass Tub/Shower Combo
    • Tub / Shower Faucet: Single Control Anti-Scald Diverter
    • Lavy: China Sink With Overflow
    • Lavy Faucet: Single Handle Lavy Faucet
    • Toilet: Elongated Bowl
    • Mirror: Trimmed Above Sink
    • Hardware: Brushed Nickel Towel Hook & Tissue Holder
    • Other: Laminate Ledge Below Mirror
    400 bathroom home features

    Interior

    • Drywall Finish: Textured & Painted Prism White
    • Drywall Corners: Square Including Windows w/Wood Sill
    • Marriage Line Close-Up: Hidden Ridgebeam Tape & Textured
    • Cabinets: Durabuilt with Adjustable Shelves
    • Cabinet Doors: Picture Frame Alkorcell
    • Cabinet Pulls: Satin Silver Knobs
    • Countertops: Wilsonart Laminate
    • Counter Edge: Wilsonart Laminate
    • Backsplash: Stacked Ceramic Tile
    • Interior Doors: White Raised Panel
    • Interior Door Hardware: Satin Silver Lever Handles
    • Door Trim: 2 1/4" White Square Door Casing
    • Baseboards: 2 1/4" Square Baseboard Vinyl Areas Only
    • Ceiling Cove: Optional Only With Tall Wall Upgrade
    • Closet Shelving: Wood With Dowel Rod
    • Window Coverings: White Window Cornices
    • Blinds: Metal Miniblinds Throughout
    • Carpet: Edgewater
    • Pad: 7#, 7/16" Thick Rebond Carpet Pad
    • Vinyl Flooring: Kitchen, Utility, Entry & Baths
    • Tile Flooring: Optional
    • Laminate Flooring: Optional
    • Accent Paint: Optional


    Images of homes are solely for illustrative purposes and should not be relied upon. Images may not accurately represent the actual condition of a home as constructed, and may contain options which are not standard on all homes.

    The Bay View I 28443A

    $114,900

    3 bedrooms (sleeps 3-6)

    2 full bathrooms

    1,188 sq. ft.

    44' x 27'

    ADU eligible

    400 standard features

    Exterior

    • Siding: Allura Panel Fibercement Traditional Cedar 30YR
    • Siding Underlayment: House Wrap
    • Trim: 3.5" Allura Fibercement
    • Fascia: 7.5" Allura Fibercement
    • Soffit: HardiSoffit Cedarmill
    • Roofing: Architectural Shingles
    • Roofing Underlayment: Sythetic
    • Windows: Vinyl Frame Low-E Dual Glazed
    • Front Door: 36" Six-Panel
    • Rear Door: 36" Six-Panel
    • Exterior Floor Decking: Stained Wood- per print
    • Hose Bib: Optional
    • Dormer: Optional

    Construction

    • Frame: I-Beam Chassis
    • Axles: Recycled
    • Floor Joist: 2x6 16" OC or 2x8 16" OC on 14' or Wider Floors
    • Floor Decking: 19/32 OSB Tongue & Groove
    • Exterior Walls: 2x6 16" OC / 90" Height
    • Interior Walls: 16" OC @ Marriage Line 24" OC All Others
    • Roof Trusses: 24" OC
    • Roof Pitch & Load: 3/12 Pitch 30#
    • Eaves & Overhangs: 12"
    • Ceiling: Vaulted
    • Insulation: R40-R21-R38 (Ceiling - Walls - Floor)
    • Heating: EB-15F Electric Furnace*
    • Duct System: Insulated Graduated Fiberglass
    • Heat Registers: In Line With Toe-Kick Kitchen & Baths
    • Air Return: Over Door
    • Cross Overs: Flex Ducts
    • Ventilation: Baths & Whole Home
    • Air & Vapor Barrier: Sill Seal with Spray Vapor Barrier
    • Crawl Space: N/A
    • Attic Access: N/A

    Interior

    • Drywall Finish: Textured & Painted Prism White
    • Drywall Corners: Square Including Windows w/Wood Sill
    • Marriage Line Close-Up: Hidden Ridgebeam Tape & Textured
    • Cabinets: Durabuilt with Adjustable Shelves
    • Cabinet Doors: Picture Frame Alkorcell
    • Cabinet Pulls: Satin Silver Knobs
    • Countertops: Wilsonart Laminate
    • Counter Edge: Wilsonart Laminate
    • Backsplash: Stacked Ceramic Tile
    • Interior Doors: White Raised Panel
    • Interior Door Hardware: Satin Silver Lever Handles
    • Door Trim: 2 1/4" White Square Door Casing
    • Baseboards: 2 1/4" Square Baseboard Vinyl Areas Only
    • Ceiling Cove: Optional Only With Tall Wall Upgrade
    • Closet Shelving: Wood With Dowel Rod
    • Window Coverings: White Window Cornices
    • Blinds: Metal Miniblinds Throughout
    • Carpet: Edgewater
    • Pad: 7#, 7/16" Thick Rebond Carpet Pad
    • Vinyl Flooring: Kitchen, Utility, Entry & Baths
    • Tile Flooring: Optional
    • Laminate Flooring: Optional
    • Accent Paint: Optional

    Kitchen

    • Kitchen Sink: 7" Deep Stainless Steel Double Bowl
    • Kitchen Faucet: Nickel Single Lever
    • Kitchen Sink Front: Fixed Drawer Front
    • Shut Off Valves: All Fixtures & Whole Home
    • Range: Black Freestanding Electric
    • Range Ventilation: Black Broan Vertical Range Hood
    • Refrigerator: Black 18cf Top & Bottom Frost Free
    • Over Refrigerator: Shelf
    • Water Heater: Rheem 40 Gal Electric
    • Water Heater Access: Access Panel
    • Utility Plumbing: Plumb for Washer Single Lever Gate Valves
    • Special Plumbing: Plumb for Icemaker
    • Gas Lines: N/A

    Mechanical

    • Mainpanel: 200 Amp Electrical Service
    • Switches: Rocker Type
    • Light Bulbs: LED Bulbs Installed
    • Entry Lights: White Wall Mount Jelly Jar
    • Closet Lights (Walk-in Size): 4" Recessed LED Can Light
    • Wall Light: Optional
    • Dining Room Lights: Rectangle Chandelier
    • Morning Room Lights: Single Pendant light per plan
    • Kitchen Area Lights: (4) 6" Recessed LED Can Lights
    • Kitchen Sink Light: 6" Recessed LED Can Light
    • Island or Bar Lighting: (2) Pendants with Optional Island
    • Utility & Hall Lights: 4" Recessed LED Can Light
    • Bathroom Light: Bathroom Strip Lights Metro
    • Bedrooms Lights: Overhead Ceiling Light 2 Bulb Metro
    • Fan (Wire): Optional
    • TV Jack (Plate & Conduit): Optional
    • Phone Jack (Plate & Conduit): Optional
    • Freezer (Wire): Optional
    • Dryer Hookup: Wire 220V For Dryer
    • GFCI Recept: (1) Exterior per plan
    • Safety: Smoke Detectors

    Bathroom

    • Master Bathroom
    • Tub / Shower: 60" 1-piece Fiberglass Tub/Shower Combo
    • Tub / Shower Faucet: Single Control Anti-Scald Diverter
    • Tub: N/A
    • Lavy: China Sink With Overflow
    • Lavy Faucet: Single Handle Lavy Faucet
    • Toilet: Elongated Bowl
    • Mirror: Trimmed Above Sink
    • Hardware: Brushed Nickel Towel Hook & Tissue Holder
    • Secondary Bathroom
    • Tub / Shower: 60" 1-piece Fiberglass Tub/Shower Combo
    • Tub / Shower Faucet: Single Control Anti-Scald Diverter
    • Lavy: China Sink With Overflow
    • Lavy Faucet: Single Handle Lavy Faucet
    • Toilet: Elongated Bowl
    • Mirror: Trimmed Above Sink
    • Hardware: Brushed Nickel Towel Hook & Tissue Holder
    • Other: Laminate Ledge Below Mirror
