400 series

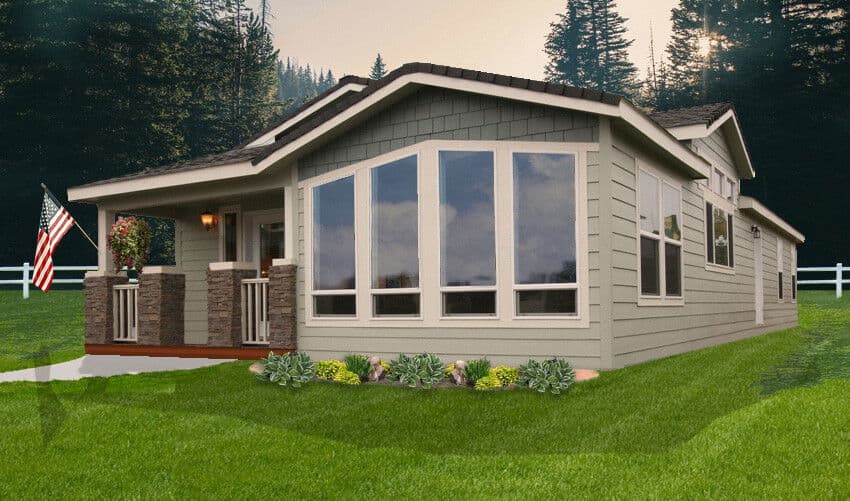

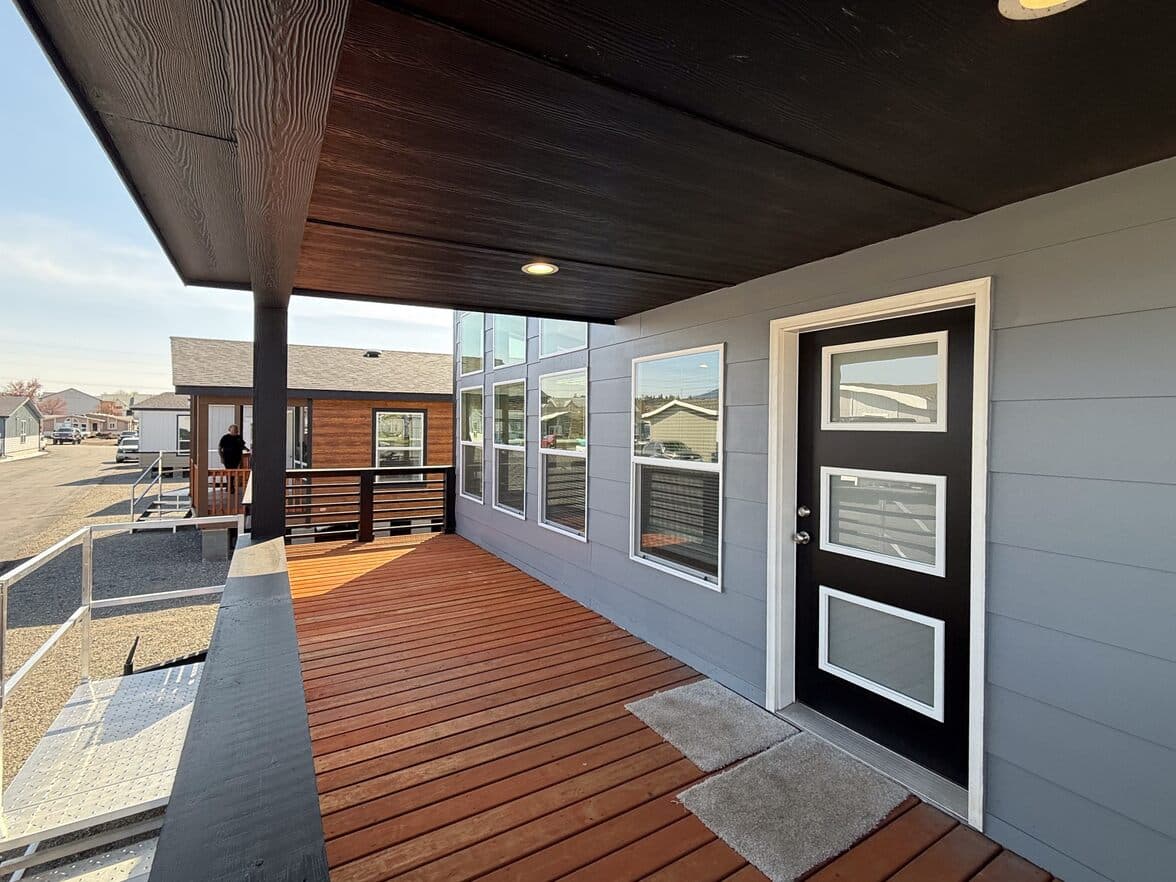

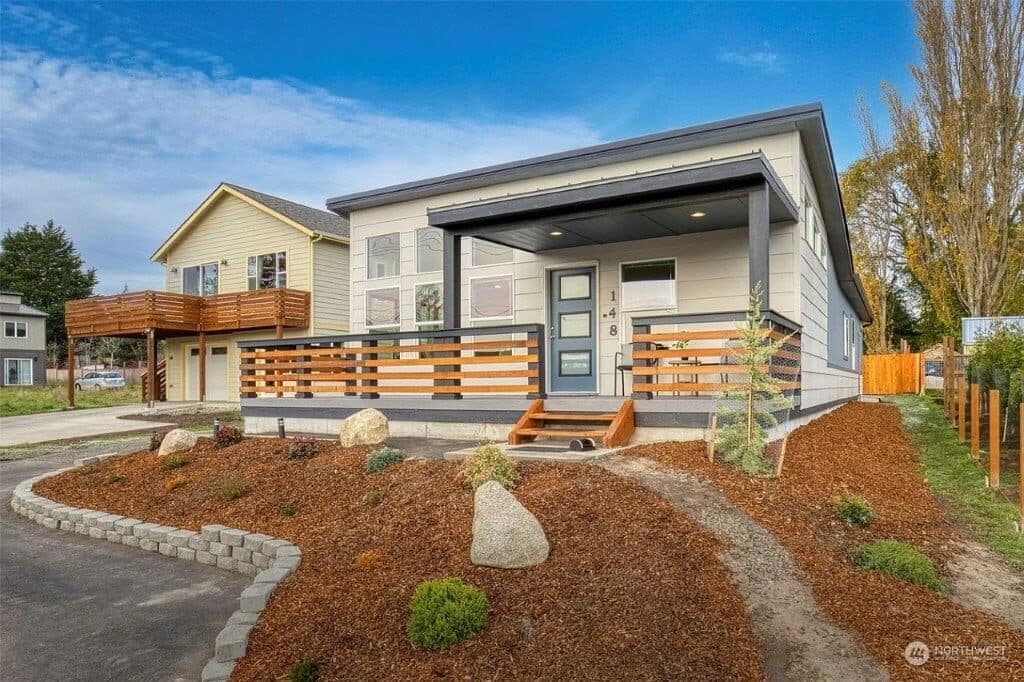

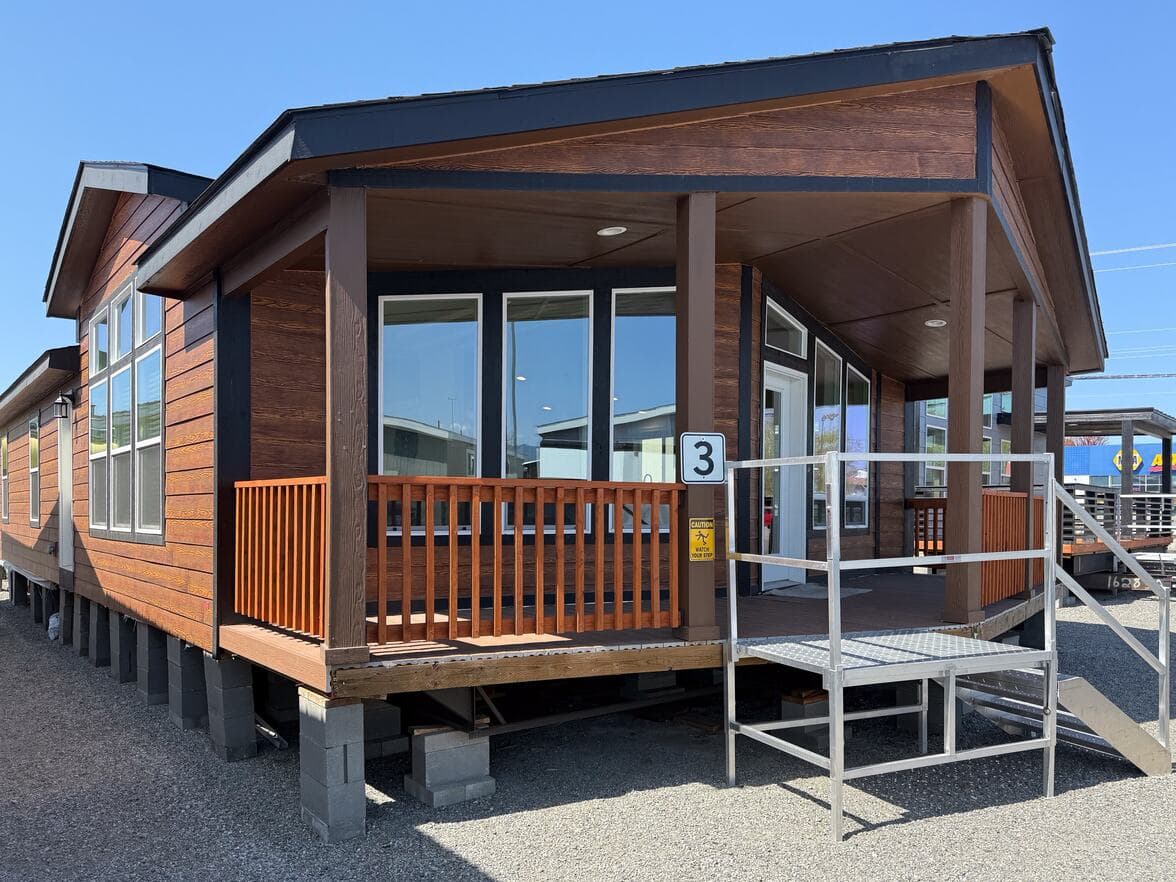

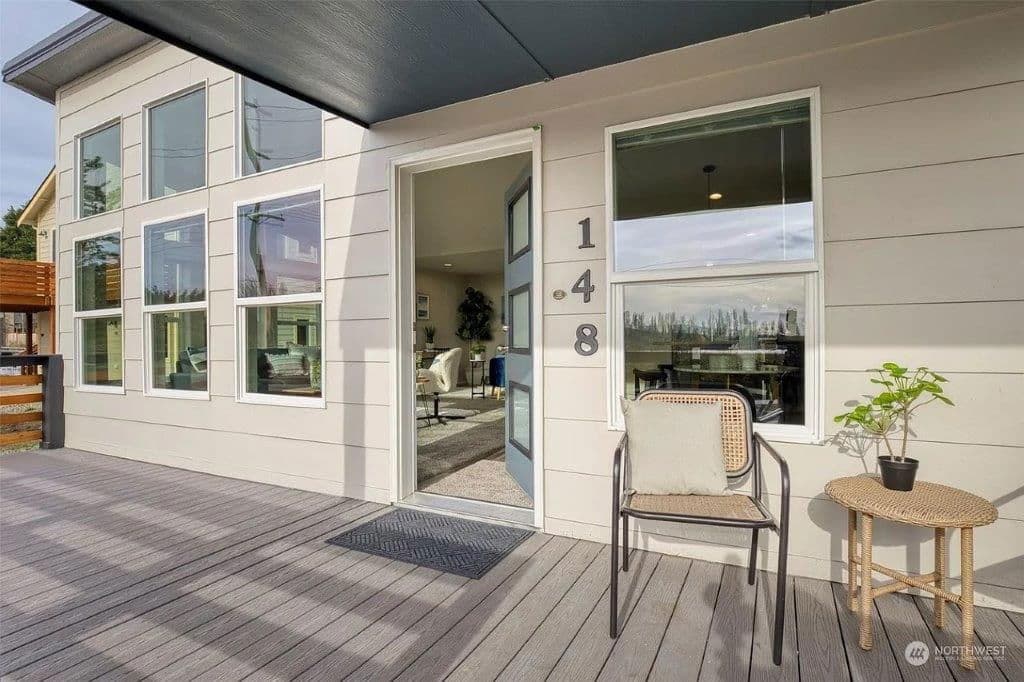

Exterior

• Siding: Allura Panel Fibercement Traditional Cedar 30YR
• Siding Underlayment: House Wrap
• Trim: 3.5" Allura Fibercement
• Fascia: 7.5" Allura Fibercement
• Soffit: HardiSoffit Cedarmill
• Roofing: Architectural Shingles
• Roofing Underlayment: Sythetic
• Windows: Vinyl Frame Low-E Dual Glazed
• Front Door: 36" Six-Panel
• Rear Door: 36" Six-Panel
• Exterior Floor Decking: Stained Wood- per print
• Hose Bib: Optional
• Dormer: Optional

Siding: Allura Panel Fibercement Traditional Cedar 30YR
Siding Underlayment: House Wrap
Trim: 3.5" Allura Fibercement
Fascia: 7.5" Allura Fibercement
Soffit: HardiSoffit Cedarmill
Roofing: Architectural Shingles
Roofing Underlayment: Sythetic
Windows: Vinyl Frame Low-E Dual Glazed
Front Door: 36" Six-Panel
Rear Door: 36" Six-Panel
Exterior Floor Decking: Stained Wood- per print
Hose Bib: Optional
Dormer: Optional

Construction

• Frame: I-Beam Chassis
• Axles: Recycled
• Floor Joist: 2x6 16" OC or 2x8 16" OC on 14' or Wider Floors
• Floor Decking: 19/32 OSB Tongue & Groove
• Exterior Walls: 2x6 16" OC / 90" Height
• Interior Walls: 16" OC @ Marriage Line 24" OC All Others
• Roof Trusses: 24" OC
• Roof Pitch & Load: 3/12 Pitch 30#
• Eaves & Overhangs: 12"
• Ceiling: Vaulted
• Insulation: R40-R21-R38 (Ceiling - Walls - Floor)
• Heating: EB-15F Electric Furnace*
• Duct System: Insulated Graduated Fiberglass
• Heat Registers: In Line With Toe-Kick Kitchen & Baths
• Air Return: Over Door
• Cross Overs: Flex Ducts
• Ventilation: Baths & Whole Home
• Air & Vapor Barrier: Sill Seal with Spray Vapor Barrier
• Crawl Space: N/A
• Attic Access: N/A

Frame: I-Beam Chassis
Axles: Recycled
Floor Joist: 2x6 16" OC or 2x8 16" OC on 14' or Wider Floors
Floor Decking: 19/32 OSB Tongue & Groove
Exterior Walls: 2x6 16" OC / 90" Height
Interior Walls: 16" OC @ Marriage Line 24" OC All Others
Roof Trusses: 24" OC
Roof Pitch & Load: 3/12 Pitch 30#
Eaves & Overhangs: 12"
Ceiling: Vaulted
Insulation: R40-R21-R38 (Ceiling - Walls - Floor)
Heating: EB-15F Electric Furnace*
Duct System: Insulated Graduated Fiberglass
Heat Registers: In Line With Toe-Kick Kitchen & Baths
Air Return: Over Door
Cross Overs: Flex Ducts
Ventilation: Baths & Whole Home
Air & Vapor Barrier: Sill Seal with Spray Vapor Barrier
Crawl Space: N/A
Attic Access: N/A

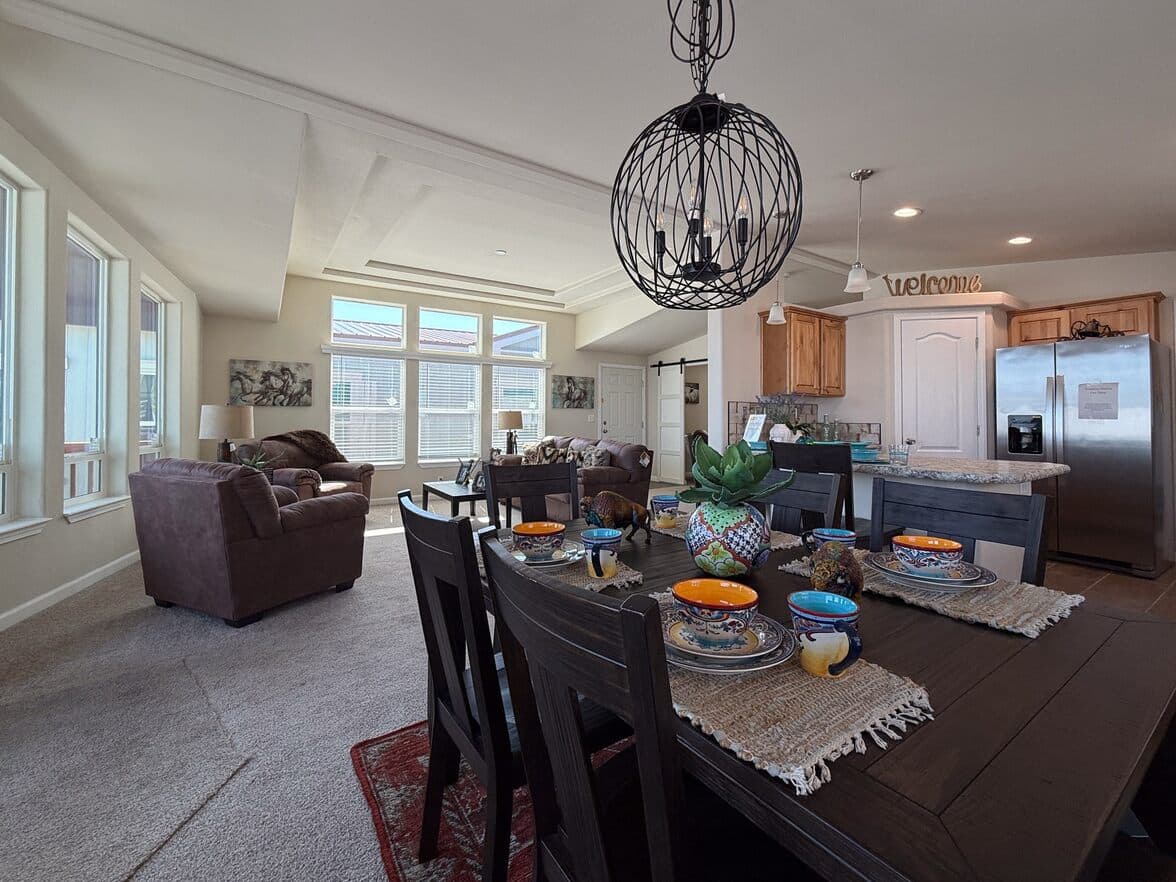

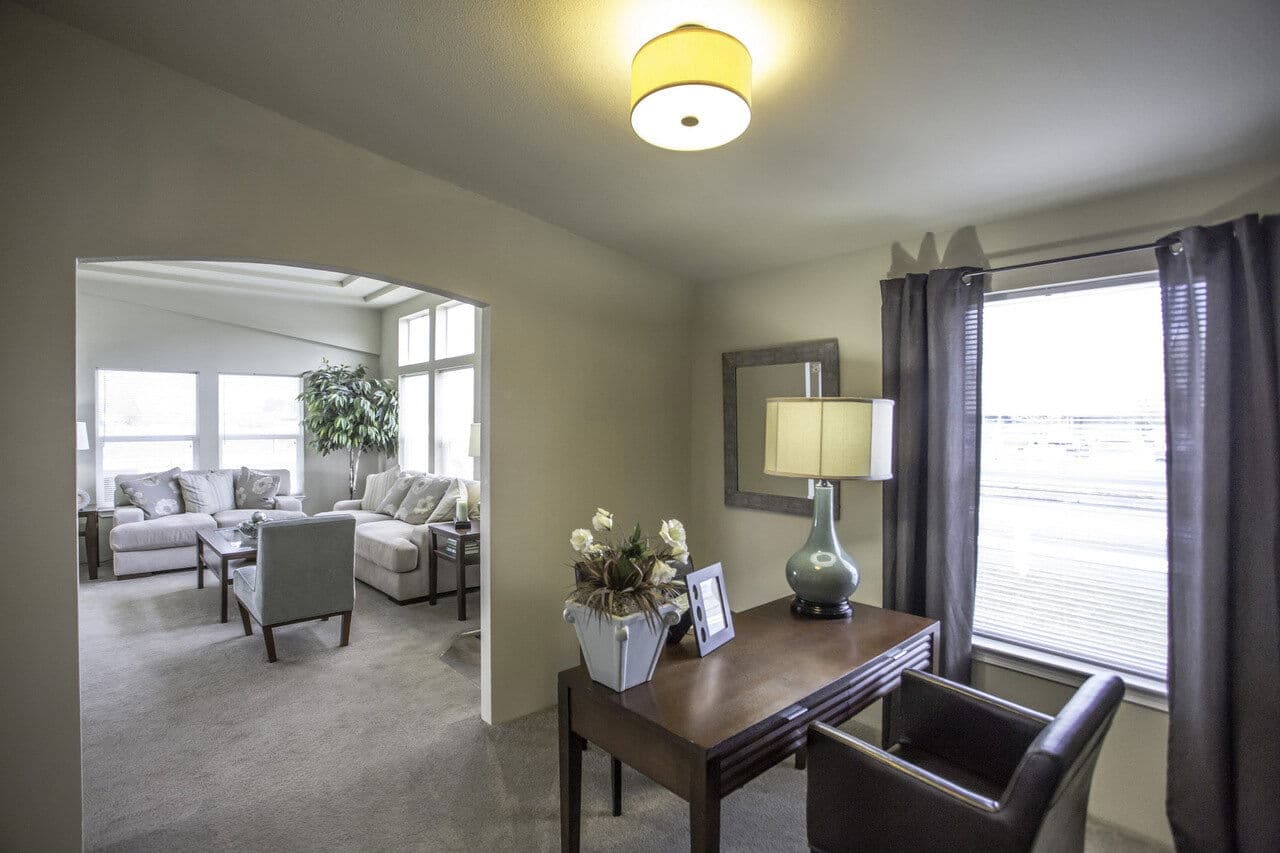

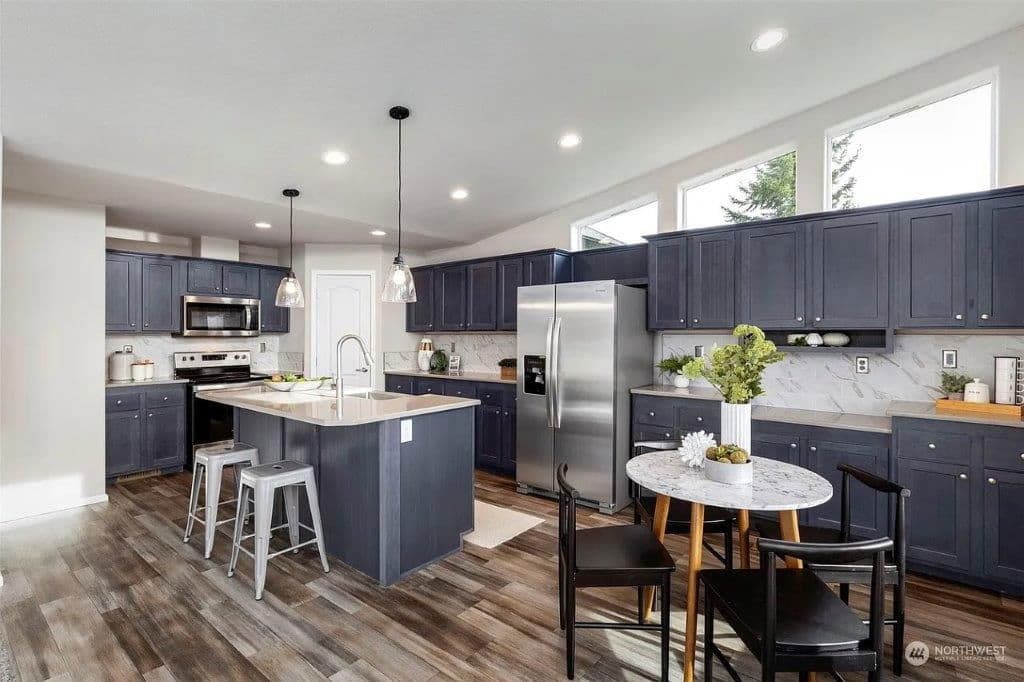

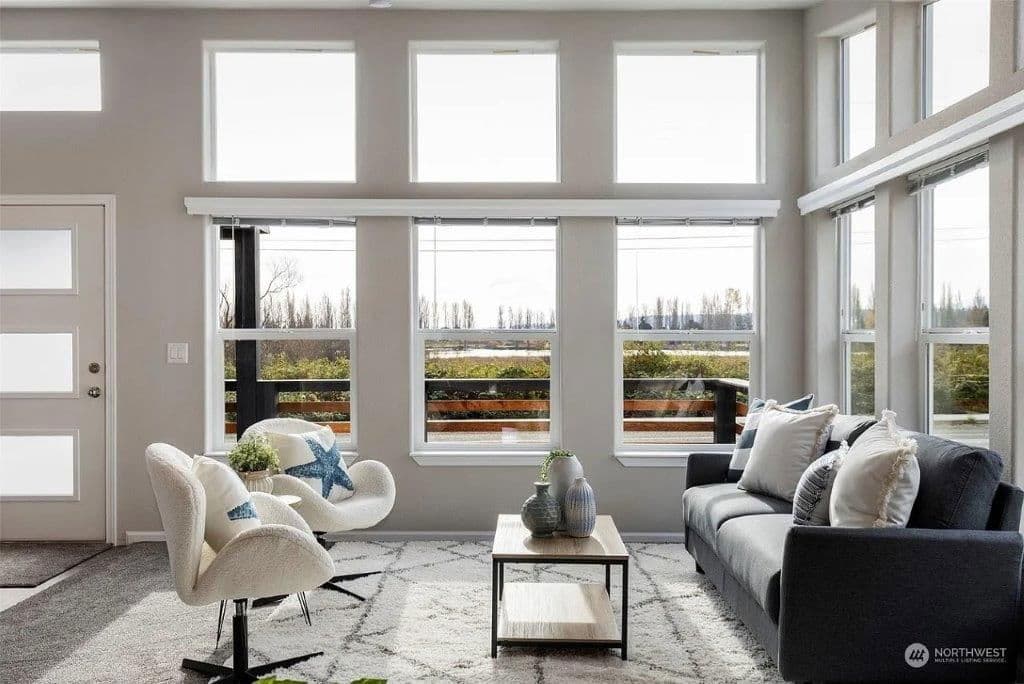

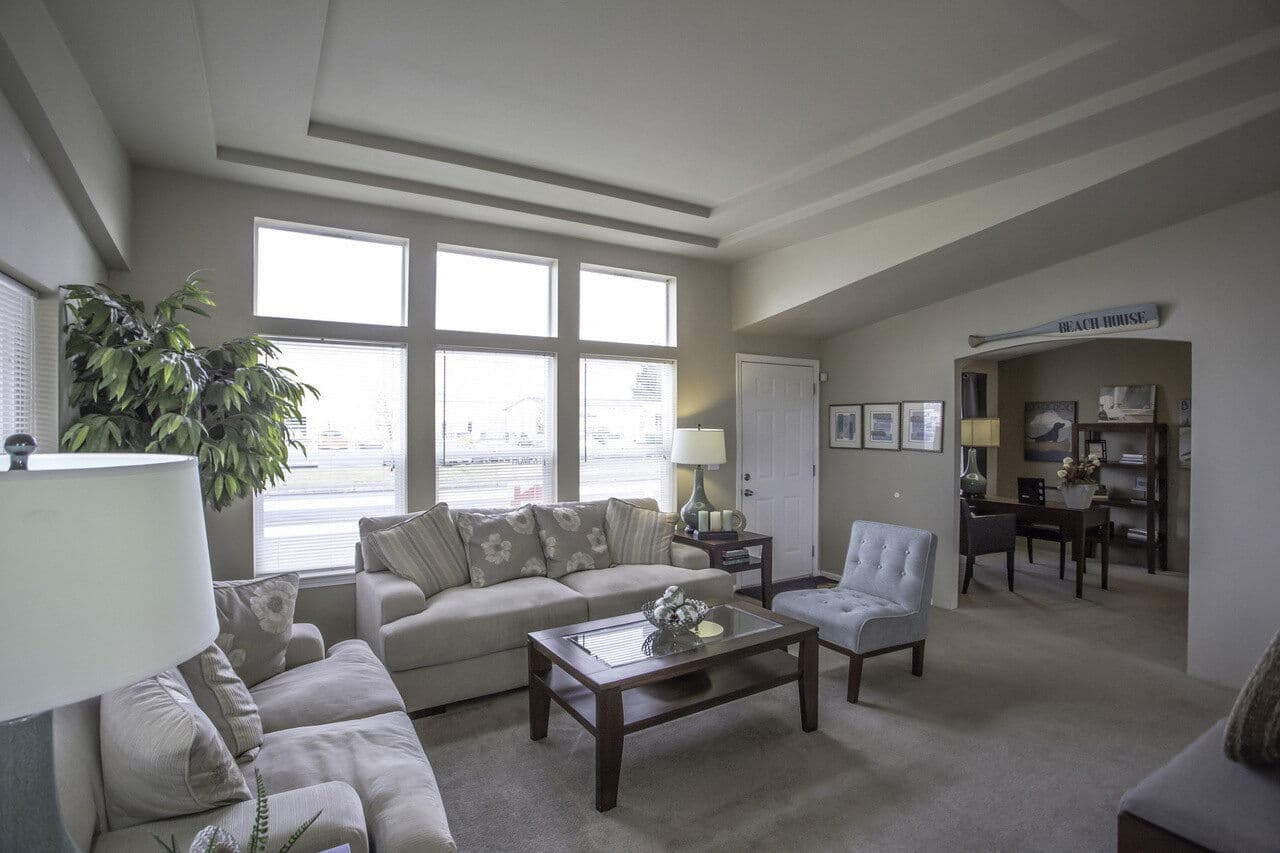

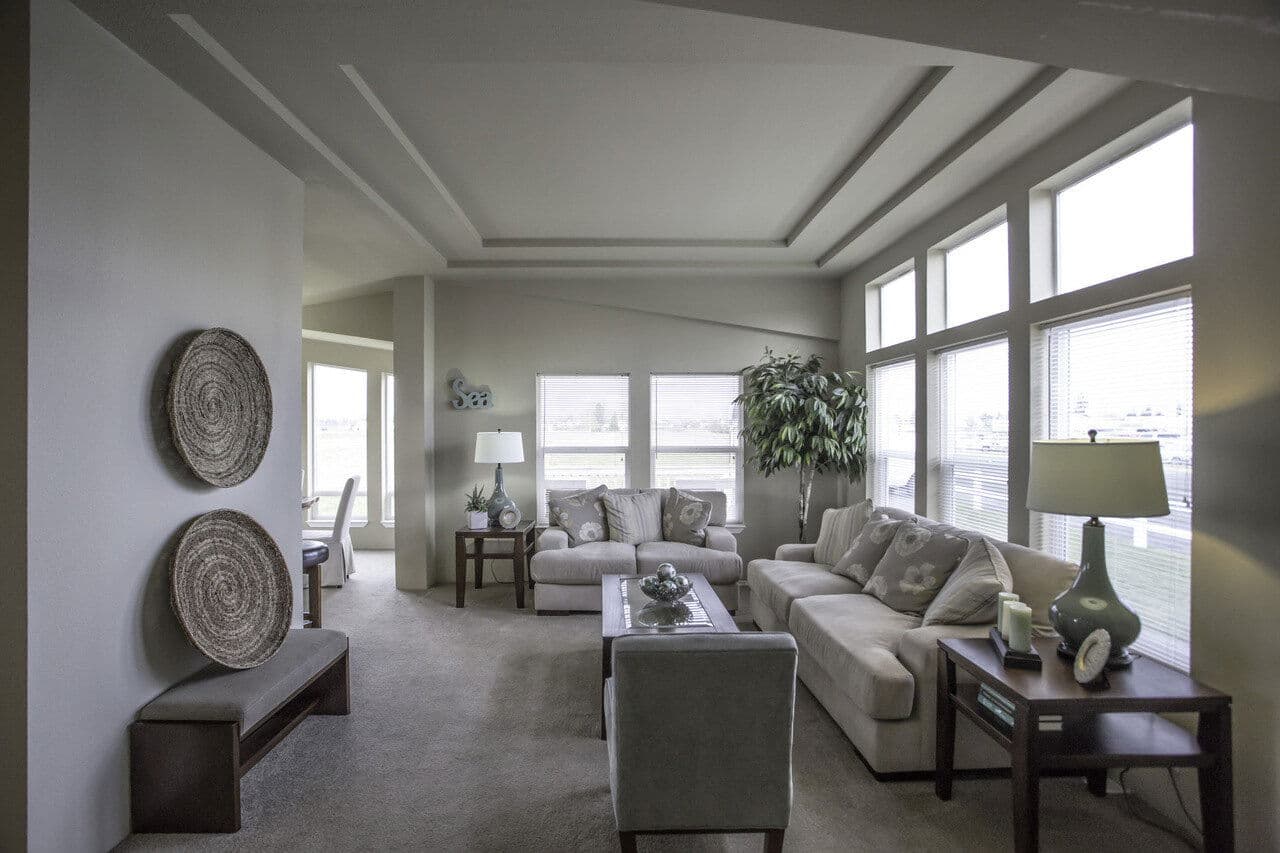

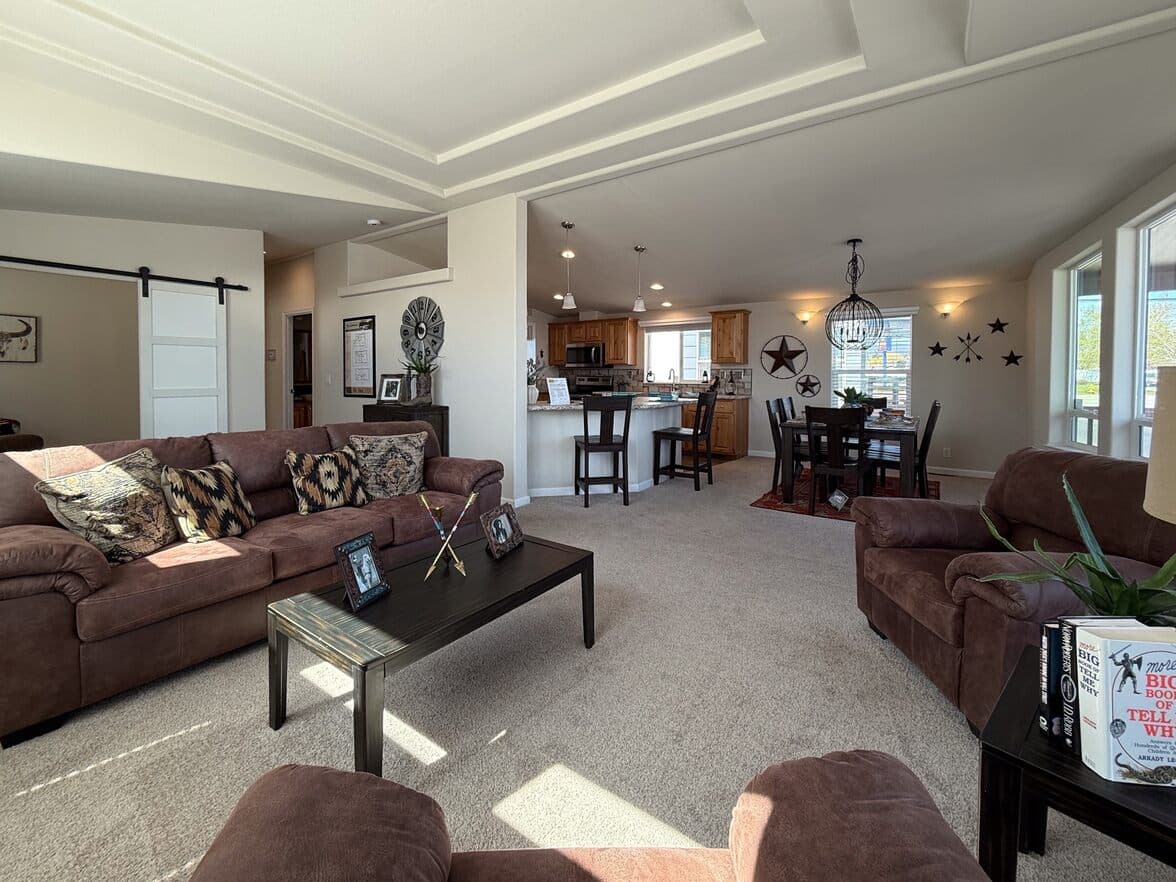

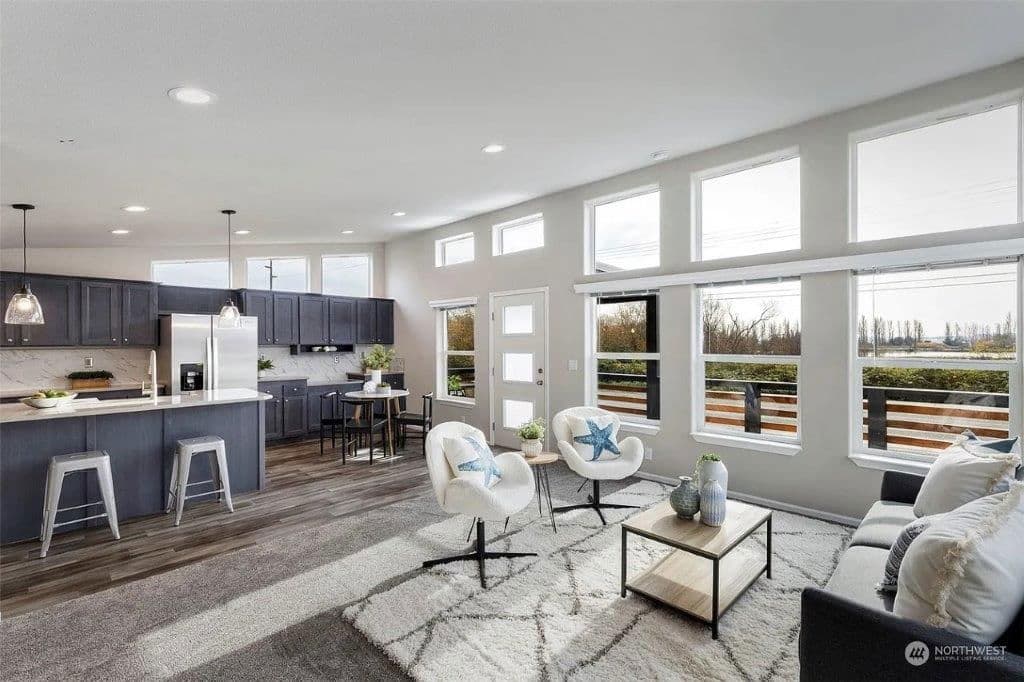

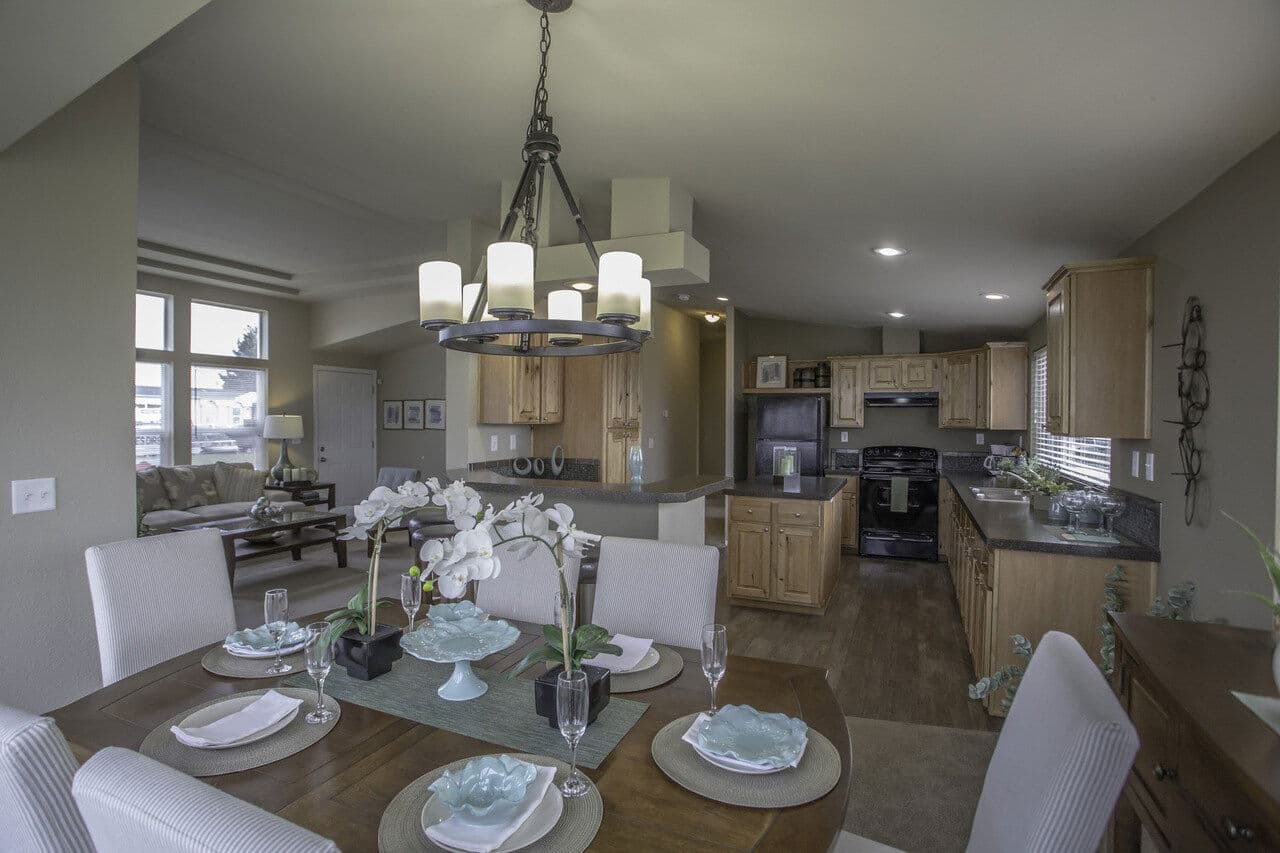

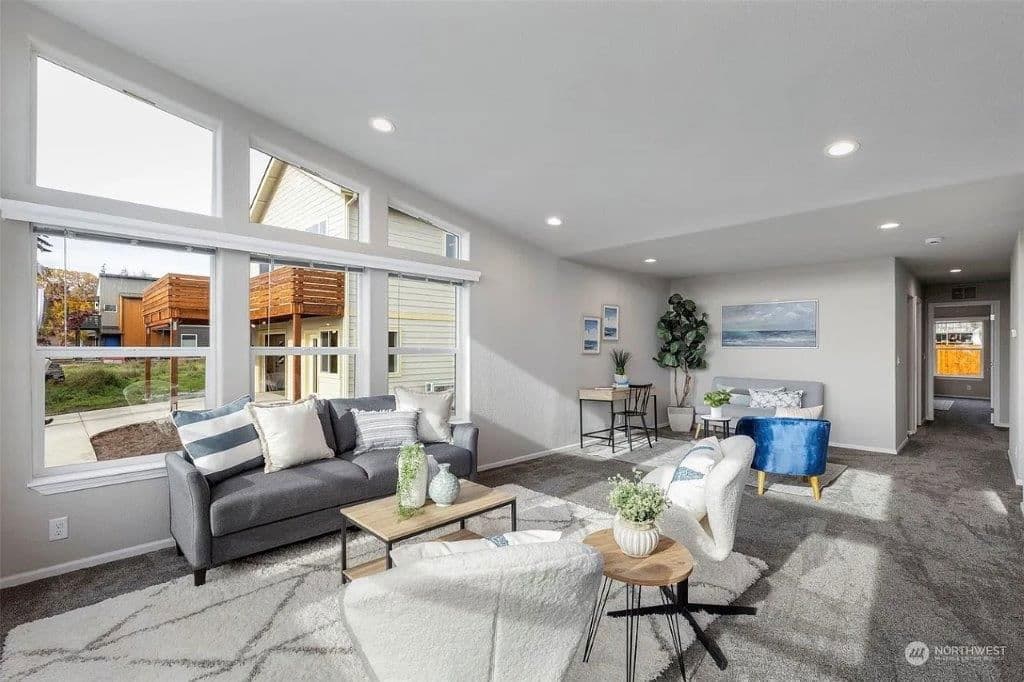

Interior

• Drywall Finish: Textured & Painted Prism White
• Drywall Corners: Square Including Windows w/Wood Sill
• Marriage Line Close-Up: Hidden Ridgebeam Tape & Textured
• Cabinets: Durabuilt with Adjustable Shelves
• Cabinet Doors: Picture Frame Alkorcell
• Cabinet Pulls: Satin Silver Knobs
• Countertops: Wilsonart Laminate
• Counter Edge: Wilsonart Laminate
• Backsplash: Stacked Ceramic Tile
• Interior Doors: White Raised Panel
• Interior Door Hardware: Satin Silver Lever Handles
• Door Trim: 2 1/4" White Square Door Casing
• Baseboards: 2 1/4" Square Baseboard Vinyl Areas Only
• Ceiling Cove: Optional Only With Tall Wall Upgrade
• Closet Shelving: Wood With Dowel Rod
• Window Coverings: White Window Cornices
• Blinds: Metal Miniblinds Throughout
• Carpet: Edgewater
• Pad: 7#, 7/16" Thick Rebond Carpet Pad
• Vinyl Flooring: Kitchen, Utility, Entry & Baths
• Tile Flooring: Optional
• Laminate Flooring: Optional
• Accent Paint: Optional

Drywall Finish: Textured & Painted Prism White
Drywall Corners: Square Including Windows w/Wood Sill
Marriage Line Close-Up: Hidden Ridgebeam Tape & Textured
Cabinets: Durabuilt with Adjustable Shelves
Cabinet Doors: Picture Frame Alkorcell
Cabinet Pulls: Satin Silver Knobs
Countertops: Wilsonart Laminate
Counter Edge: Wilsonart Laminate
Backsplash: Stacked Ceramic Tile
Interior Doors: White Raised Panel
Interior Door Hardware: Satin Silver Lever Handles
Door Trim: 2 1/4" White Square Door Casing
Baseboards: 2 1/4" Square Baseboard Vinyl Areas Only
Ceiling Cove: Optional Only With Tall Wall Upgrade
Closet Shelving: Wood With Dowel Rod
Window Coverings: White Window Cornices
Blinds: Metal Miniblinds Throughout
Carpet: Edgewater
Pad: 7#, 7/16" Thick Rebond Carpet Pad
Vinyl Flooring: Kitchen, Utility, Entry & Baths
Tile Flooring: Optional
Laminate Flooring: Optional
Accent Paint: Optional

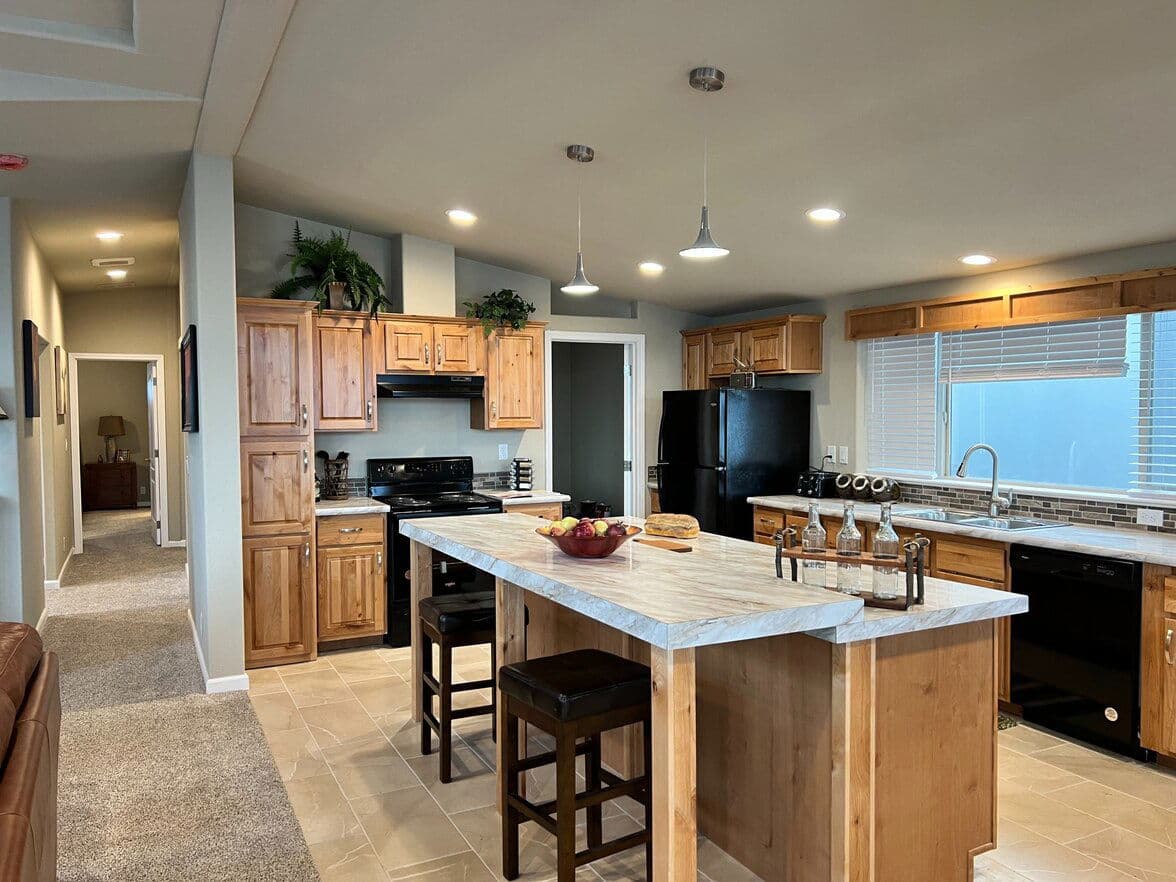

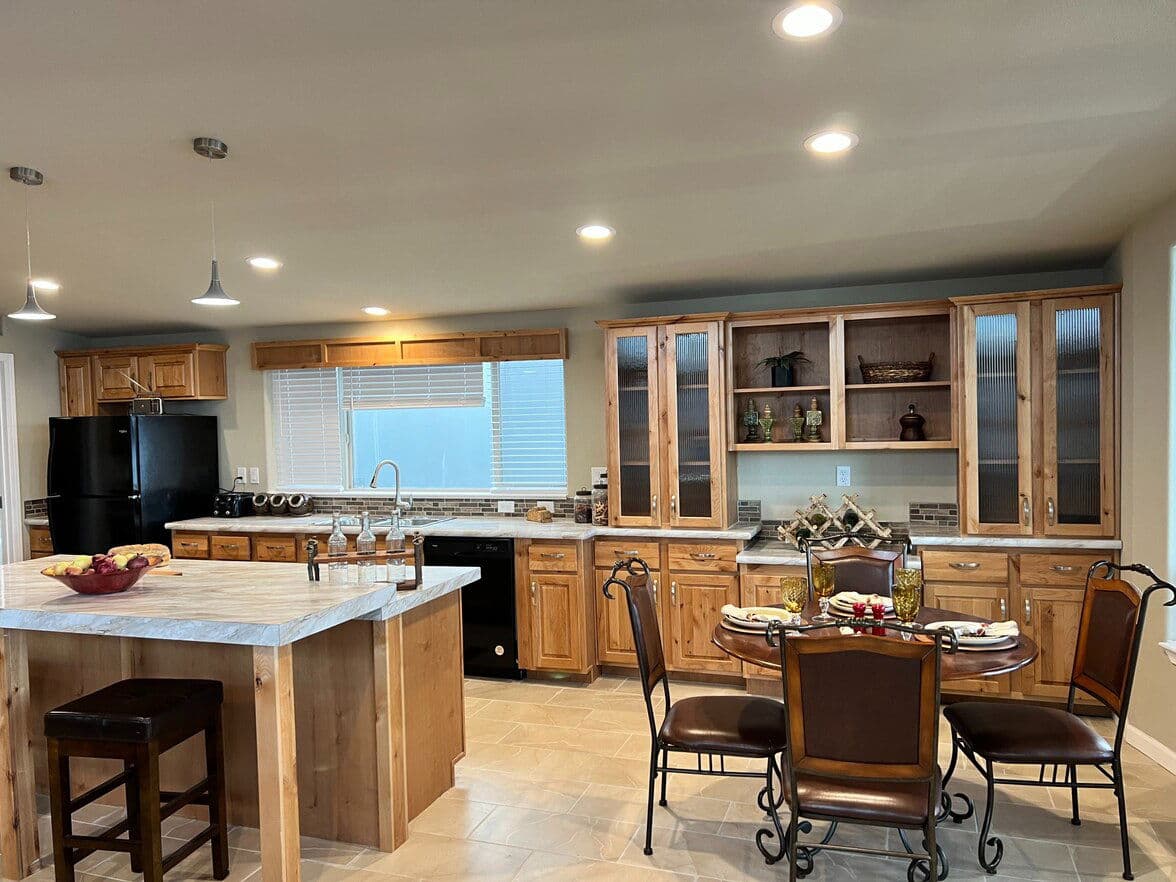

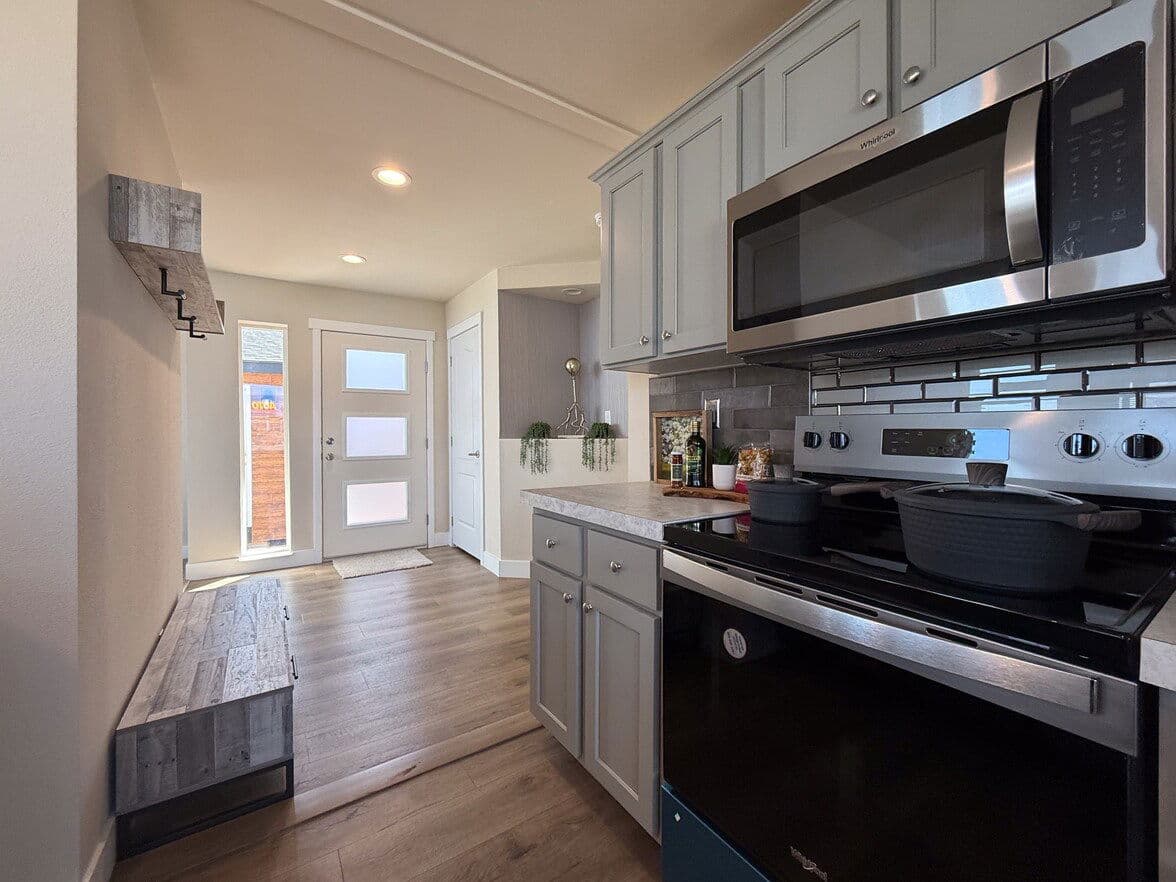

Kitchen

• Kitchen Sink: 7" Deep Stainless Steel Double Bowl
• Kitchen Faucet: Nickel Single Lever
• Kitchen Sink Front: Fixed Drawer Front
• Shut Off Valves: All Fixtures & Whole Home
• Range: Black Freestanding Electric
• Range Ventilation: Black Broan Vertical Range Hood
• Refrigerator: Black 18cf Top & Bottom Frost Free
• Over Refrigerator: Shelf
• Water Heater: Rheem 40 Gal Electric
• Water Heater Access: Access Panel
• Utility Plumbing: Plumb for Washer Single Lever Gate Valves
• Special Plumbing: Plumb for Icemaker
• Gas Lines: N/A

Kitchen Sink: 7" Deep Stainless Steel Double Bowl
Kitchen Faucet: Nickel Single Lever
Kitchen Sink Front: Fixed Drawer Front
Shut Off Valves: All Fixtures & Whole Home
Range: Black Freestanding Electric
Range Ventilation: Black Broan Vertical Range Hood
Refrigerator: Black 18cf Top & Bottom Frost Free
Over Refrigerator: Shelf
Water Heater: Rheem 40 Gal Electric
Water Heater Access: Access Panel
Utility Plumbing: Plumb for Washer Single Lever Gate Valves
Special Plumbing: Plumb for Icemaker
Gas Lines: N/A

Mechanical

• Mainpanel: 200 Amp Electrical Service
• Switches: Rocker Type
• Light Bulbs: LED Bulbs Installed
• Entry Lights: White Wall Mount Jelly Jar
• Closet Lights (Walk-in Size): 4" Recessed LED Can Light
• Wall Light: Optional
• Dining Room Lights: Rectangle Chandelier
• Morning Room Lights: Single Pendant light per plan
• Kitchen Area Lights: (4) 6" Recessed LED Can Lights
• Kitchen Sink Light: 6" Recessed LED Can Light
• Island or Bar Lighting: (2) Pendants with Optional Island
• Utility & Hall Lights: 4" Recessed LED Can Light
• Bathroom Light: Bathroom Strip Lights Metro
• Bedrooms Lights: Overhead Ceiling Light 2 Bulb Metro
• Fan (Wire): Optional
• TV Jack (Plate & Conduit): Optional
• Phone Jack (Plate & Conduit): Optional
• Freezer (Wire): Optional
• Dryer Hookup: Wire 220V For Dryer
• GFCI Recept: (1) Exterior per plan
• Safety: Smoke Detectors

Mainpanel: 200 Amp Electrical Service
Switches: Rocker Type
Light Bulbs: LED Bulbs Installed
Entry Lights: White Wall Mount Jelly Jar
Closet Lights (Walk-in Size): 4" Recessed LED Can Light
Wall Light: Optional
Dining Room Lights: Rectangle Chandelier
Morning Room Lights: Single Pendant light per plan
Kitchen Area Lights: (4) 6" Recessed LED Can Lights
Kitchen Sink Light: 6" Recessed LED Can Light
Island or Bar Lighting: (2) Pendants with Optional Island
Utility & Hall Lights: 4" Recessed LED Can Light
Bathroom Light: Bathroom Strip Lights Metro
Bedrooms Lights: Overhead Ceiling Light 2 Bulb Metro
Fan (Wire): Optional
TV Jack (Plate & Conduit): Optional
Phone Jack (Plate & Conduit): Optional
Freezer (Wire): Optional
Dryer Hookup: Wire 220V For Dryer
GFCI Recept: (1) Exterior per plan
Safety: Smoke Detectors

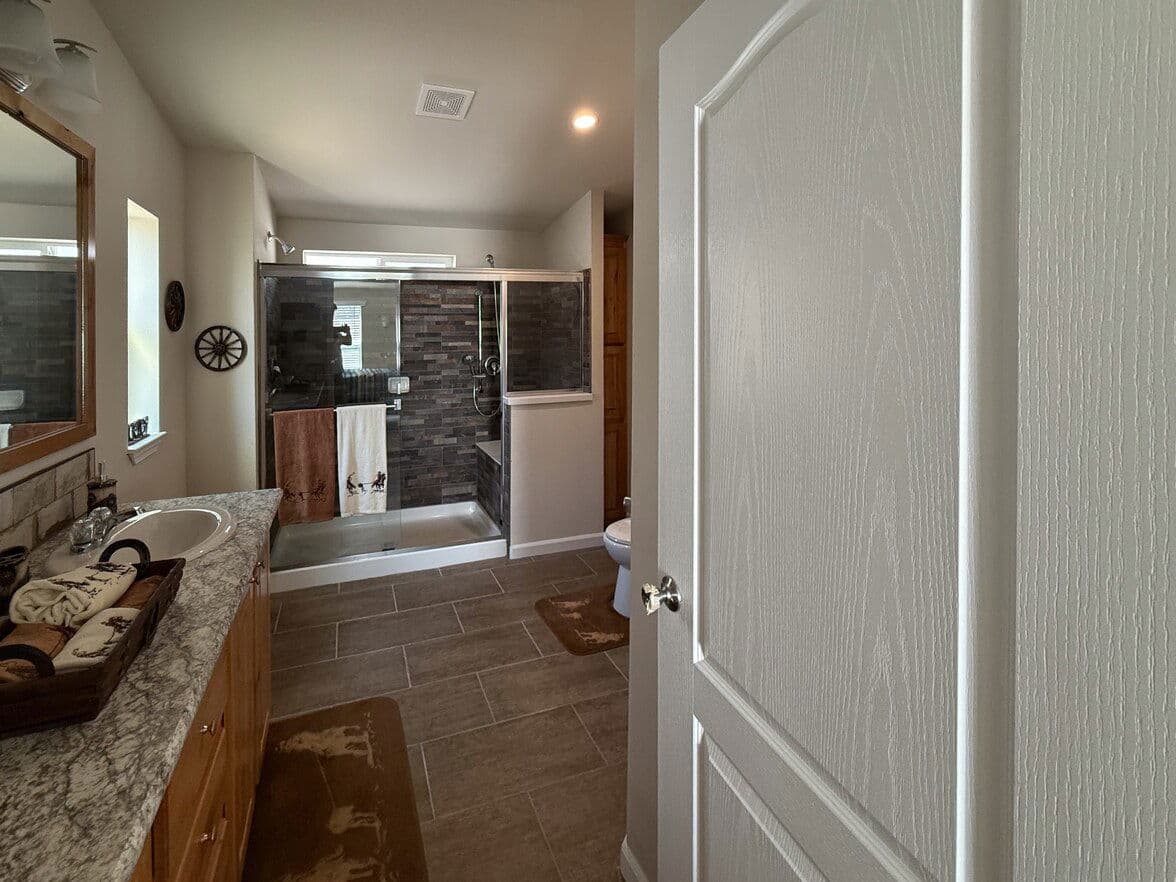

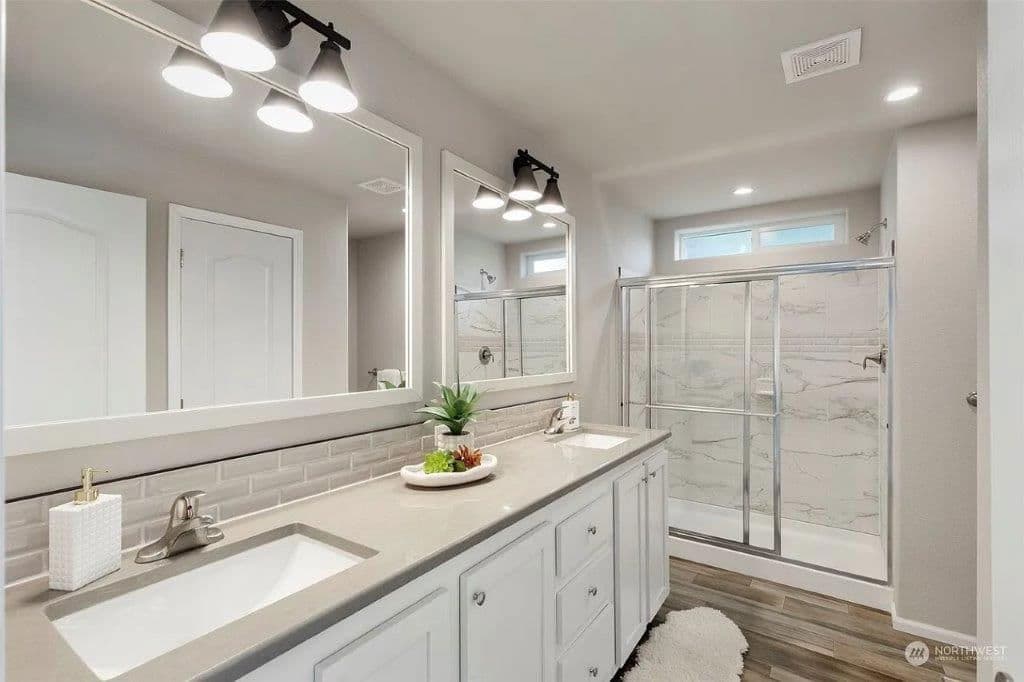

Bathroom

• Master Bathroom
• Tub / Shower: 60" 1-piece Fiberglass Tub/Shower Combo
• Tub / Shower Faucet: Single Control Anti-Scald Diverter
• Tub: N/A
• Lavy: China Sink With Overflow
• Lavy Faucet: Single Handle Lavy Faucet
• Toilet: Elongated Bowl
• Mirror: Trimmed Above Sink
• Hardware: Brushed Nickel Towel Hook & Tissue Holder
• Secondary Bathroom
• Tub / Shower: 60" 1-piece Fiberglass Tub/Shower Combo
• Tub / Shower Faucet: Single Control Anti-Scald Diverter
• Lavy: China Sink With Overflow
• Lavy Faucet: Single Handle Lavy Faucet
• Toilet: Elongated Bowl
• Mirror: Trimmed Above Sink
• Hardware: Brushed Nickel Towel Hook & Tissue Holder
• Other: Laminate Ledge Below Mirror

Master Bathroom
Tub / Shower: 60" 1-piece Fiberglass Tub/Shower Combo
Tub / Shower Faucet: Single Control Anti-Scald Diverter
Tub: N/A
Lavy: China Sink With Overflow
Lavy Faucet: Single Handle Lavy Faucet
Toilet: Elongated Bowl
Mirror: Trimmed Above Sink
Hardware: Brushed Nickel Towel Hook & Tissue Holder
Secondary Bathroom
Tub / Shower: 60" 1-piece Fiberglass Tub/Shower Combo
Tub / Shower Faucet: Single Control Anti-Scald Diverter
Lavy: China Sink With Overflow
Lavy Faucet: Single Handle Lavy Faucet
Toilet: Elongated Bowl
Mirror: Trimmed Above Sink
Hardware: Brushed Nickel Towel Hook & Tissue Holder
Other: Laminate Ledge Below Mirror
