American Freedom IV 14713A
3 Bed
2 Bath
954 Sq. Ft.
70' 8" x 13' 6"

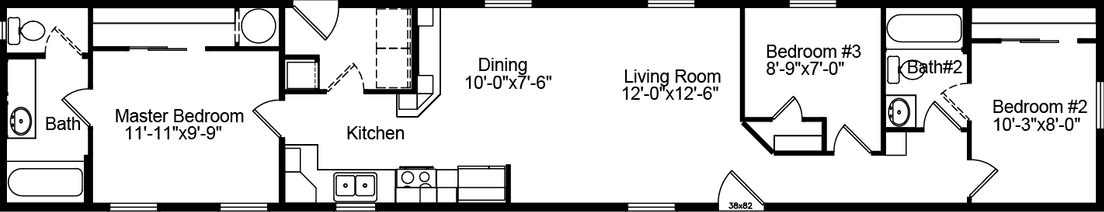

Floor Plan

    American freedom iv 14713a floor plan home features

    Property map

    Enter your address to check if this home fits on your property

    Enter an address to find homes that fit your lot


    Exterior & Construction

    • Siding: Allura Panel Fibercement Traditional Cedar 30YR
    • Siding Underlayment: House Wrap
    • Trim: 3.5" Allura Fibercement
    • Fascia: 7.5" Allura Fibercement
    • Soffit: HardiSoffit Cedarmill
    • Roofing: Architectural Shingles
    • Roofing Underlayment: Sythetic
    • Windows: Vinyl Frame Low-E Dual Glazed
    • Front Door: 36" Six-Panel
    • Rear Door: 36" Six-Panel
    • Exterior Floor Decking: Stained Wood- per print
    • Hose Bib: Optional
    • Dormer: Optional
    • Frame: I-Beam Chassis
    • Axles & tires: Recycled
    • Floor Joist: 2x6 16"OC -13'6" floor (2x8-19.2"o/c for 14'8")
    • Floor Decking: 19/32 OSB Tongue & Groove
    • Exterior Walls: 2x6 16" OC / 96" Height
    • Interior Walls: 24" OC
    • Roof Trusses: 24" OC
    • Roof Pitch & Load: 4/12 13'6" Wide, 30# , High & Low Roof Vents
    • Eaves & Overhangs: 6" Eaves, 12" End Overhangs
    • Ceiling: Flat
    • Insulation: R40-R21-R38 (Ceiling - Walls - Floor)
    • Heating: EB-15F Electric Furnace*
    • Duct System: Insulated Graduated Fiberglass
    • Heat Registers: In Line
    • Air Return: Over Door
    • Cross Overs: N/A
    • Ventilation: Baths & Whole Home
    • Air & Vapor Barrier: Sill Seal with Spray Vapor Barrier
    • Crawl Space: N/A
    • Attic Access: N/A

    Kitchen

    • Kitchen Sink: 7" Deep Stainless Steel Double Bowl
    • Kitchen Faucet: Nickel Single Lever
    • Kitchen Sink Front: Fixed Drawer Front
    • Shut Off Valves: All Fixtures & Whole Home
    • Range: Black Freestanding Electric
    • Range Ventilation: Black Broan Vertical Range Hood
    • Refrigerator: Black 18cf Top & Bottom Frost Free
    • Over Refrigerator: Shelf
    • Water Heater: Rheem 40 Gal Electric
    • Water Heater Access: Access Panel
    • Utility Plumbing: Plumb for Washer Single Lever Gate Valves
    • Special Plumbing: Plumb for Icemaker
    • Gas Lines: N/A
    American freedom interior and kitchen home features

    Interior

    • Drywall Finish: Textured & Painted Prism White
    • Drywall Corners: Square Including Windows w/Wood Sill
    • Marriage Line Close-Up: N/A
    • Cabinets: Durabuilt with Adjustable Shelves
    • Cabinet Doors: Picture Frame Alkorcell
    • Cabinet Pulls: Satin Silver Knobs
    • Countertops: Wilsonart Laminate
    • Counter Edge: Wilsonart Laminate
    • Backsplash: Stacked Ceramic Tile
    • Interior Doors: White Raised Panel
    • Interior Door Hardware: Silver Lever Handles
    • Door Trim: 2 1/4" White Square Door Casing
    • Baseboards: 2 1/4" Square Baseboard Vinyl Areas Only
    • Ceiling Cove: N/A
    • Closet Shelving: Wood With Dowel Rod
    • Window Coverings: Plant Built Valances
    • Blinds: Metal Miniblinds Throughout
    • Carpet: Edgewater
    • Pad: 7#, 7/16" Thick Rebond Carpet Pad
    • Vinyl Flooring: Kitchen, DR, LR, Utility, & Baths
    • Tile Flooring: Optional
    • Laminate Flooring: Optional
    • Accent Paint: Optional


    Images of homes are solely for illustrative purposes and should not be relied upon. Images may not accurately represent the actual condition of a home as constructed, and may contain options which are not standard on all homes.

    American Freedom IV 14713A

    $91,900

    3 bedrooms (sleeps 3-6)

    2 full bathrooms

    954 sq. ft.

    70' 8" x 13' 6"

    ADU eligible

    Design home
    American Freedom standard features

    Exterior

    • Siding: Allura Panel Fibercement Traditional Cedar 30YR
    • Siding Underlayment: House Wrap
    • Trim: 3.5" Allura Fibercement
    • Fascia: 7.5" Allura Fibercement
    • Soffit: HardiSoffit Cedarmill
    • Roofing: Architectural Shingles
    • Roofing Underlayment: Sythetic
    • Windows: Vinyl Frame Low-E Dual Glazed
    • Front Door: 36" Six-Panel
    • Rear Door: 36" Six-Panel
    • Exterior Floor Decking: Stained Wood- per print
    • Hose Bib: Optional
    • Dormer: Optional

    Construction

    • Frame: I-Beam Chassis
    • Axles & tires: Recycled
    • Floor Joist: 2x6 16"OC -13'6" floor (2x8-19.2"o/c for 14'8")
    • Floor Decking: 19/32 OSB Tongue & Groove
    • Exterior Walls: 2x6 16" OC / 96" Height
    • Interior Walls: 24" OC
    • Roof Trusses: 24" OC
    • Roof Pitch & Load: 4/12 13'6" Wide, 30# , High & Low Roof Vents
    • Eaves & Overhangs: 6" Eaves, 12" End Overhangs
    • Ceiling: Flat
    • Insulation: R40-R21-R38 (Ceiling - Walls - Floor)
    • Heating: EB-15F Electric Furnace*
    • Duct System: Insulated Graduated Fiberglass
    • Heat Registers: In Line
    • Air Return: Over Door
    • Cross Overs: N/A
    • Ventilation: Baths & Whole Home
    • Air & Vapor Barrier: Sill Seal with Spray Vapor Barrier
    • Crawl Space: N/A
    • Attic Access: N/A

    Interior

    • Drywall Finish: Textured & Painted Prism White
    • Drywall Corners: Square Including Windows w/Wood Sill
    • Marriage Line Close-Up: N/A
    • Cabinets: Durabuilt with Adjustable Shelves
    • Cabinet Doors: Picture Frame Alkorcell
    • Cabinet Pulls: Satin Silver Knobs
    • Countertops: Wilsonart Laminate
    • Counter Edge: Wilsonart Laminate
    • Backsplash: Stacked Ceramic Tile
    • Interior Doors: White Raised Panel
    • Interior Door Hardware: Silver Lever Handles
    • Door Trim: 2 1/4" White Square Door Casing
    • Baseboards: 2 1/4" Square Baseboard Vinyl Areas Only
    • Ceiling Cove: N/A
    • Closet Shelving: Wood With Dowel Rod
    • Window Coverings: Plant Built Valances
    • Blinds: Metal Miniblinds Throughout
    • Carpet: Edgewater
    • Pad: 7#, 7/16" Thick Rebond Carpet Pad
    • Vinyl Flooring: Kitchen, DR, LR, Utility, & Baths
    • Tile Flooring: Optional
    • Laminate Flooring: Optional
    • Accent Paint: Optional

    Kitchen

    • Kitchen Sink: 7" Deep Stainless Steel Double Bowl
    • Kitchen Faucet: Nickel Single Lever
    • Kitchen Sink Front: Fixed Drawer Front
    • Shut Off Valves: All Fixtures & Whole Home
    • Range: Black Freestanding Electric
    • Range Ventilation: Black Broan Vertical Range Hood
    • Refrigerator: Black 18cf Top & Bottom Frost Free
    • Over Refrigerator: Shelf
    • Water Heater: Rheem 40 Gal Electric
    • Water Heater Access: Access Panel
    • Utility Plumbing: Plumb for Washer Single Lever Gate Valves
    • Special Plumbing: Plumb for Icemaker
    • Gas Lines: N/A

    Mechanical

    • Mainpanel: 200 Amp Electrical Service
    • Switches: Rocker Type
    • Light Bulbs: LED Bulbs Installed
    • Entry Lights: White Wall Mount Jelly Jar
    • Closet Lights (Walk-in Size): Recessed LED Can Light
    • Wall Light: Optional
    • Dining Room Lights: Recessed LED Can Light
    • Morning Room Lights: Single Pendant light per plan
    • Kitchen Area Lights: (4) Recessed LED Can Lights
    • Kitchen Sink Light: Recessed LED Can Light
    • Island or Bar Lighting: Optional
    • Utility & Hall Lights: 4" LED Can Light
    • Bathroom Light: Bathroom Strip Lights Metro
    • Bedrooms Lights: Overhead Ceiling Light 2 Bulb Metro
    • Fan (Wire): Optional
    • TV Jack (Plate & Conduit): Optional
    • Phone Jack (Plate & Conduit: Optional
    • Freezer (Wire): Optional
    • Dryer Hookup: Wire 220V For Dryer
    • GFCI Recept: (1) Exterior per plan
    • Safety: Smoke Detectors

    Bathroom

    • Master Bathroom
    • Tub / Shower: 60" 1-piece Tub/Shower Combo
    • Tub / Shower Faucet: Single Control Anti-Scald Diverter
    • Tub: N/A
    • Lavy: China Sink With Overflow
    • Lavy Faucet: Single Lever Lavy Faucet
    • Toilet: Elongated Bowl
    • Mirror: Trimmed Above Sink
    • Hardware: Brushed Nickel Towel Hook & Tissue Holder
    • Secondary Bathroom
    • Tub / Shower: 60" 1-piece Tub/Shower Combo
    • Tub / Shower Faucet: Single Control Anti-Scald Diverter
    • Lavy: China Sink With Overflow
    • Lavy Faucet: Single Lever Lavy Faucet
    • Toilet: Elongated Bowl
    • Mirror: Trimmed Above Sink
    • Hardware: Brushed Nickel Towel Hook & Tissue Holder
