The Keystone

1 Bed

1 Bath

486 Sq. Ft.

13' 6" x 36'

1 Bed

1 Bath

486 Sq. Ft.

13' 6" x 36'

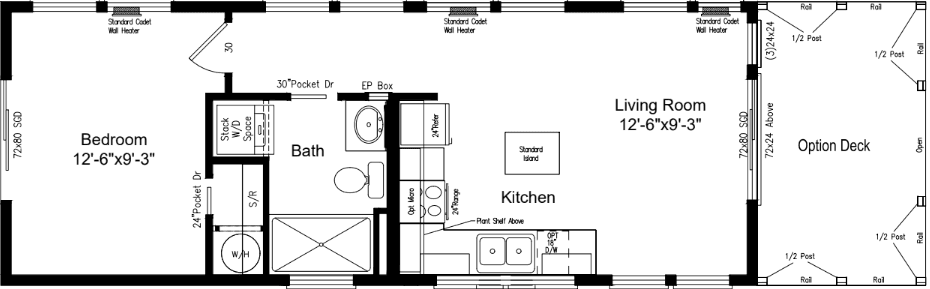

Floor Plan

Property map

Enter your address or APN/TMS to check if this home fits on your property

Enter your property street address or APN/TMS

The Keystone

$82,532

1 bedroom

1 full bathroom

486 sq. ft.

13' 6" x 36'

See brochureDesign home

American Freedom standard features

Exterior

Siding: Allura Panel Fibercement Traditional Cedar 30YR
Siding Underlayment: House Wrap
Trim: 3.5" Allura Fibercement
Fascia: 7.5" Allura Fibercement
Soffit: HardiSoffit Cedarmill
Roofing: Architectural Shingles
Roofing Underlayment: Sythetic
Windows: Vinyl Frame Low-E Dual Glazed
Front Door: 36" Six-Panel
Rear Door: 36" Six-Panel
Exterior Floor Decking: Stained Wood- per print
Hose Bib: Optional
Dormer: Optional

Homes Direct

Affordable homes at your fingertips

Pages

Homes Map Sign up Sign in

Help

Get started with Homes Direct

Find, design, and order your next home in a few clicks.

Dealer License #: DL1081954

Construction

Frame: I-Beam Chassis
Axles & tires: Recycled
Floor Joist: 2x6 16"OC -13'6" floor (2x8-19.2"o/c for 14'8")
Floor Decking: 19/32 OSB Tongue & Groove
Exterior Walls: 2x6 16" OC / 96" Height
Interior Walls: 24" OC
Roof Trusses: 24" OC
Roof Pitch & Load: 4/12 13'6" Wide, 30# , High & Low Roof Vents
Eaves & Overhangs: 6" Eaves, 12" End Overhangs
Ceiling: Flat
Insulation: R40-R21-R38 (Ceiling - Walls - Floor)
Heating: EB-15F Electric Furnace*
Duct System: Insulated Graduated Fiberglass
Heat Registers: In Line
Air Return: Over Door
Cross Overs: N/A
Ventilation: Baths & Whole Home
Air & Vapor Barrier: Sill Seal with Spray Vapor Barrier
Crawl Space: N/A
Attic Access: N/A

Interior

Drywall Finish: Textured & Painted Prism White
Drywall Corners: Square Including Windows w/Wood Sill
Marriage Line Close-Up: N/A
Cabinets: Durabuilt with Adjustable Shelves
Cabinet Doors: Picture Frame Alkorcell
Cabinet Pulls: Satin Silver Knobs
Countertops: Wilsonart Laminate
Counter Edge: Wilsonart Laminate
Backsplash: Stacked Ceramic Tile
Interior Doors: White Raised Panel
Interior Door Hardware: Silver Lever Handles
Door Trim: 2 1/4" White Square Door Casing
Baseboards: 2 1/4" Square Baseboard Vinyl Areas Only
Ceiling Cove: N/A
Closet Shelving: Wood With Dowel Rod
Window Coverings: Plant Built Valances
Blinds: Metal Miniblinds Throughout
Carpet: Edgewater
Pad: 7#, 7/16" Thick Rebond Carpet Pad
Vinyl Flooring: Kitchen, DR, LR, Utility, & Baths
Tile Flooring: Optional
Laminate Flooring: Optional
Accent Paint: Optional

Kitchen

Kitchen Sink: 7" Deep Stainless Steel Double Bowl
Kitchen Faucet: Nickel Single Lever
Kitchen Sink Front: Fixed Drawer Front
Shut Off Valves: All Fixtures & Whole Home
Range: Black Freestanding Electric
Range Ventilation: Black Broan Vertical Range Hood
Refrigerator: Black 18cf Top & Bottom Frost Free
Over Refrigerator: Shelf
Water Heater: Rheem 40 Gal Electric
Water Heater Access: Access Panel
Utility Plumbing: Plumb for Washer Single Lever Gate Valves
Special Plumbing: Plumb for Icemaker
Gas Lines: N/A

Mechanical

Mainpanel: 200 Amp Electrical Service
Switches: Rocker Type
Light Bulbs: LED Bulbs Installed
Entry Lights: White Wall Mount Jelly Jar
Closet Lights (Walk-in Size): Recessed LED Can Light
Wall Light: Optional
Dining Room Lights: Recessed LED Can Light
Morning Room Lights: Single Pendant light per plan
Kitchen Area Lights: (4) Recessed LED Can Lights
Kitchen Sink Light: Recessed LED Can Light
Island or Bar Lighting: Optional
Utility & Hall Lights: 4" LED Can Light
Bathroom Light: Bathroom Strip Lights Metro
Bedrooms Lights: Overhead Ceiling Light 2 Bulb Metro
Fan (Wire): Optional
TV Jack (Plate & Conduit): Optional
Phone Jack (Plate & Conduit: Optional
Freezer (Wire): Optional
Dryer Hookup: Wire 220V For Dryer
GFCI Recept: (1) Exterior per plan
Safety: Smoke Detectors

Bathroom

Master Bathroom
Tub / Shower: 60" 1-piece Tub/Shower Combo
Tub / Shower Faucet: Single Control Anti-Scald Diverter
Tub: N/A
Lavy: China Sink With Overflow
Lavy Faucet: Single Lever Lavy Faucet
Toilet: Elongated Bowl
Mirror: Trimmed Above Sink
Hardware: Brushed Nickel Towel Hook & Tissue Holder
Secondary Bathroom
Tub / Shower: 60" 1-piece Tub/Shower Combo
Tub / Shower Faucet: Single Control Anti-Scald Diverter
Lavy: China Sink With Overflow
Lavy Faucet: Single Lever Lavy Faucet
Toilet: Elongated Bowl
Mirror: Trimmed Above Sink
Hardware: Brushed Nickel Towel Hook & Tissue Holder

Exterior & Construction

Siding: Allura Panel Fibercement Traditional Cedar 30YR
Siding Underlayment: House Wrap
Trim: 3.5" Allura Fibercement
Fascia: 7.5" Allura Fibercement
Soffit: HardiSoffit Cedarmill
Roofing: Architectural Shingles
Roofing Underlayment: Sythetic
Windows: Vinyl Frame Low-E Dual Glazed
Front Door: 36" Six-Panel
Rear Door: 36" Six-Panel
Exterior Floor Decking: Stained Wood- per print
Hose Bib: Optional
Dormer: Optional
Frame: I-Beam Chassis
Axles & tires: Recycled
Floor Joist: 2x6 16"OC -13'6" floor (2x8-19.2"o/c for 14'8")
Floor Decking: 19/32 OSB Tongue & Groove
Exterior Walls: 2x6 16" OC / 96" Height
Interior Walls: 24" OC
Roof Trusses: 24" OC
Roof Pitch & Load: 4/12 13'6" Wide, 30# , High & Low Roof Vents

Siding: Allura Panel Fibercement Traditional Cedar 30YR

Siding Underlayment: House Wrap

Trim: 3.5" Allura Fibercement

Fascia: 7.5" Allura Fibercement

Soffit: HardiSoffit Cedarmill

Roofing: Architectural Shingles

Roofing Underlayment: Sythetic

Windows: Vinyl Frame Low-E Dual Glazed

Front Door: 36" Six-Panel

Rear Door: 36" Six-Panel

Exterior Floor Decking: Stained Wood- per print

Hose Bib: Optional

Dormer: Optional

Frame: I-Beam Chassis

Axles & tires: Recycled

Floor Joist: 2x6 16"OC -13'6" floor (2x8-19.2"o/c for 14'8")

Floor Decking: 19/32 OSB Tongue & Groove

Exterior Walls: 2x6 16" OC / 96" Height

Interior Walls: 24" OC

Roof Trusses: 24" OC

Roof Pitch & Load: 4/12 13'6" Wide, 30# , High & Low Roof Vents

Eaves & Overhangs: 6" Eaves, 12" End Overhangs

Ceiling: Flat

Insulation: R40-R21-R38 (Ceiling - Walls - Floor)

Heating: EB-15F Electric Furnace*

Duct System: Insulated Graduated Fiberglass

Heat Registers: In Line

Air Return: Over Door

Cross Overs: N/A

Ventilation: Baths & Whole Home

Air & Vapor Barrier: Sill Seal with Spray Vapor Barrier

Crawl Space: N/A

Attic Access: N/A

Kitchen

Kitchen Sink: 7" Deep Stainless Steel Double Bowl
Kitchen Faucet: Nickel Single Lever
Kitchen Sink Front: Fixed Drawer Front
Shut Off Valves: All Fixtures & Whole Home
Range: Black Freestanding Electric
Range Ventilation: Black Broan Vertical Range Hood
Refrigerator: Black 18cf Top & Bottom Frost Free
Over Refrigerator: Shelf
Water Heater: Rheem 40 Gal Electric
Water Heater Access: Access Panel
Utility Plumbing: Plumb for Washer Single Lever Gate Valves
Special Plumbing: Plumb for Icemaker
Gas Lines: N/A

Kitchen Sink: 7" Deep Stainless Steel Double Bowl

Kitchen Faucet: Nickel Single Lever

Kitchen Sink Front: Fixed Drawer Front

Shut Off Valves: All Fixtures & Whole Home

Range: Black Freestanding Electric

Range Ventilation: Black Broan Vertical Range Hood

Refrigerator: Black 18cf Top & Bottom Frost Free

Over Refrigerator: Shelf

Water Heater: Rheem 40 Gal Electric

Water Heater Access: Access Panel

Utility Plumbing: Plumb for Washer Single Lever Gate Valves

Special Plumbing: Plumb for Icemaker

Gas Lines: N/A

Interior

Drywall Finish: Textured & Painted Prism White
Drywall Corners: Square Including Windows w/Wood Sill
Marriage Line Close-Up: N/A
Cabinets: Durabuilt with Adjustable Shelves
Cabinet Doors: Picture Frame Alkorcell
Cabinet Pulls: Satin Silver Knobs
Countertops: Wilsonart Laminate
Counter Edge: Wilsonart Laminate
Backsplash: Stacked Ceramic Tile
Interior Doors: White Raised Panel
Interior Door Hardware: Silver Lever Handles
Door Trim: 2 1/4" White Square Door Casing
Baseboards: 2 1/4" Square Baseboard Vinyl Areas Only
Ceiling Cove: N/A
Closet Shelving: Wood With Dowel Rod
Window Coverings: Plant Built Valances
Blinds: Metal Miniblinds Throughout
Carpet: Edgewater
Pad: 7#, 7/16" Thick Rebond Carpet Pad
Vinyl Flooring: Kitchen, DR, LR, Utility, & Baths
Tile Flooring: Optional
Laminate Flooring: Optional
Accent Paint: Optional

Drywall Finish: Textured & Painted Prism White

Drywall Corners: Square Including Windows w/Wood Sill

Marriage Line Close-Up: N/A

Cabinets: Durabuilt with Adjustable Shelves

Cabinet Doors: Picture Frame Alkorcell

Cabinet Pulls: Satin Silver Knobs

Countertops: Wilsonart Laminate

Counter Edge: Wilsonart Laminate

Backsplash: Stacked Ceramic Tile

Interior Doors: White Raised Panel

Interior Door Hardware: Silver Lever Handles

Door Trim: 2 1/4" White Square Door Casing

Baseboards: 2 1/4" Square Baseboard Vinyl Areas Only

Ceiling Cove: N/A

Closet Shelving: Wood With Dowel Rod

Window Coverings: Plant Built Valances

Blinds: Metal Miniblinds Throughout

Carpet: Edgewater

Pad: 7#, 7/16" Thick Rebond Carpet Pad

Vinyl Flooring: Kitchen, DR, LR, Utility, & Baths

Tile Flooring: Optional

Laminate Flooring: Optional
